Fiber Optic Terminal box
OTB-P030
1.Description:
OTB-P030 is a plastic box that load PLC 1*8 or 1*16 splitter cassette or fiber optic adapter for fiber distribution and connection. It made of ABS plastic, suitable for outdoor wall mounted application. Its max. Capacity is 48 fibers.
2.Features:
ABS plastic material
White or black color
Mechanical sealing structure
Waterproof, IP65
Cable port: 4pcs cable gland PG16 suitable for Φ10-14mm cable entry, and 2pc Φ20mm reserved hole.
With 2pc OST-048 splice tray, max. 48 fibers
Can load 4pcs 1x8 or 2pc 1x16 splitter cassette or 1pc 48 SC simplex adapter plate
Outdoor wall mounted application
3.Specification:
Model | Dimension | Material | Capacity | Splitter cassette | Application |
OTB-P030 | 288.5x403x126.1mm | ABS | 48 fibers
| 4pcs 1*8 or 2pc 1*16 | Outdoor wall mounted |
4.Drawings: (mm)
5.Instructions:

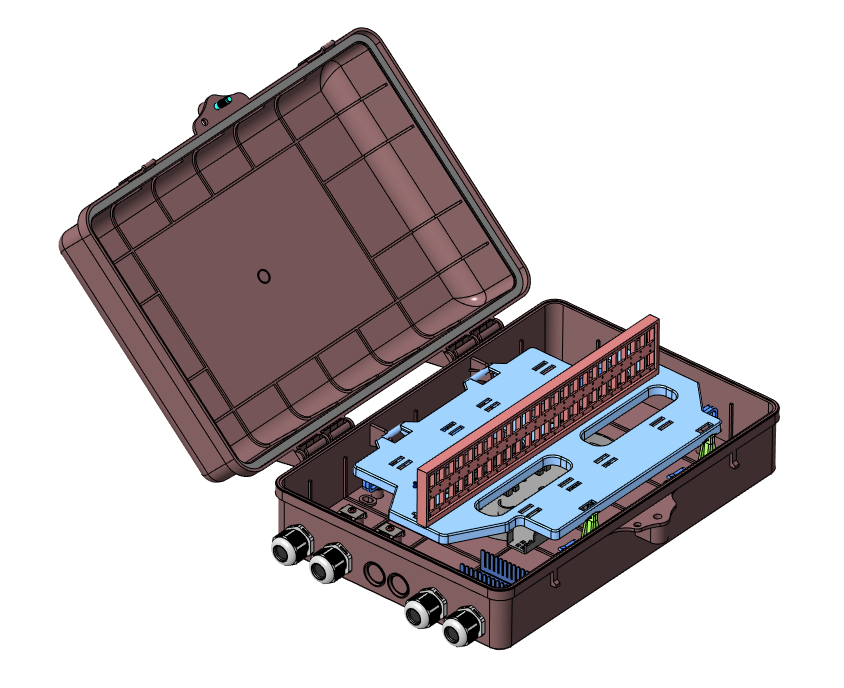

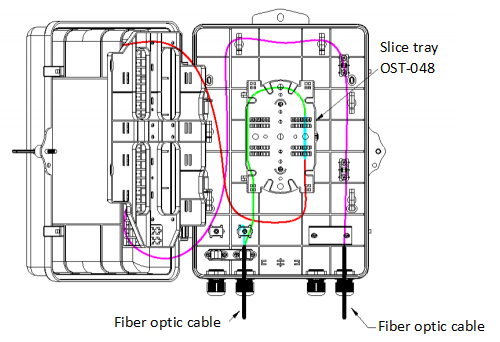

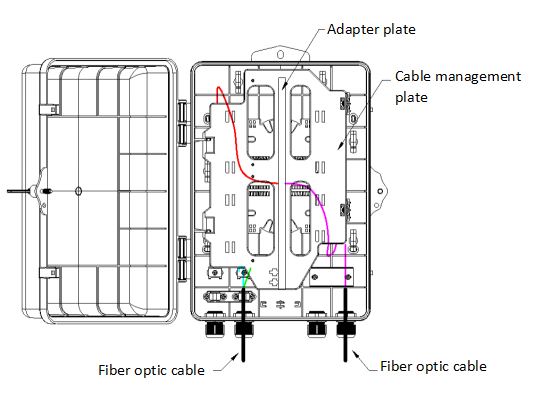

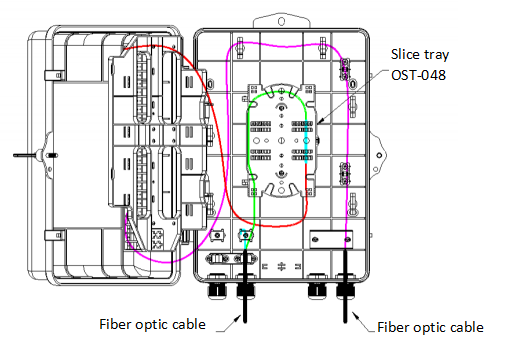

5.1.Install adapter and pigtail

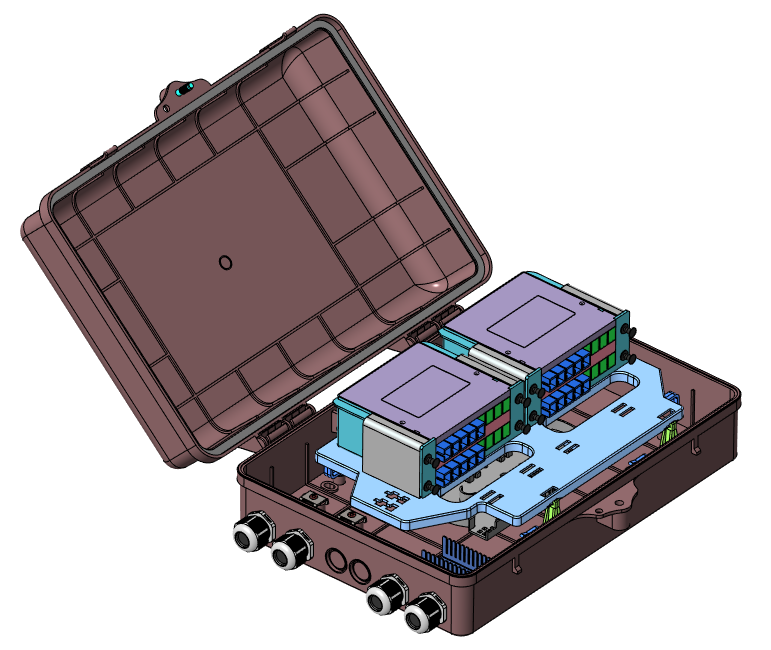

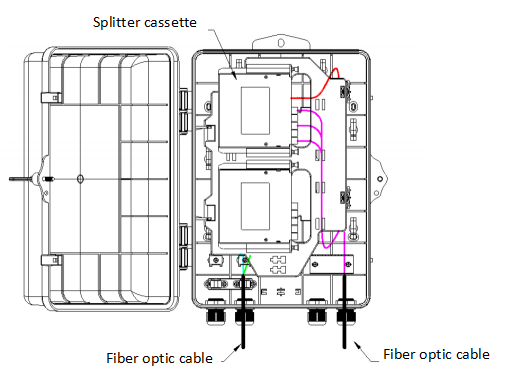

5.2.Install splitter cassette
6.Accessories:
Item | Specification | Qty |
Heat shrinkable protection sleeve | 60x2.6x1.2mm | As per capacity |
Cable tie | 3*100mm, white color | 6pcs |
Screws | C type 5*40, metal | 4pcs |
Plastic expansion pipe | Φ8*40mm, white color | 4pcs |
Key | ABS plastic, white color | 1pc |
7.Packing information:
4pcs per carton, each carton 62x43x30cm

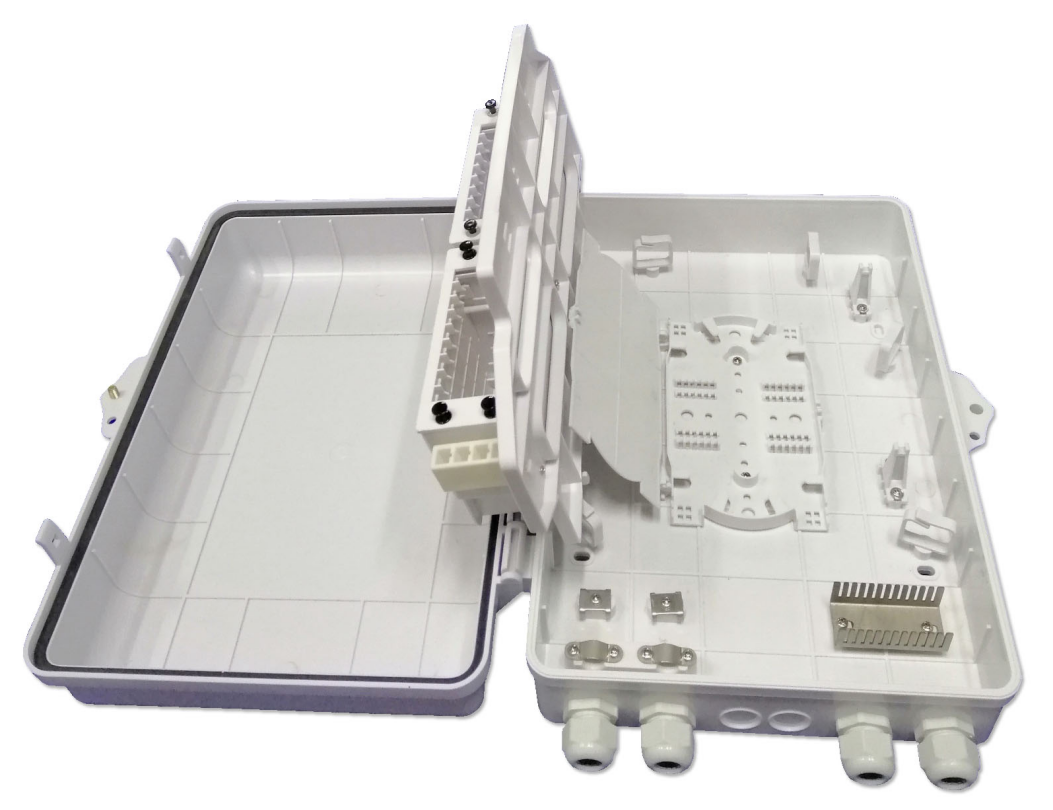

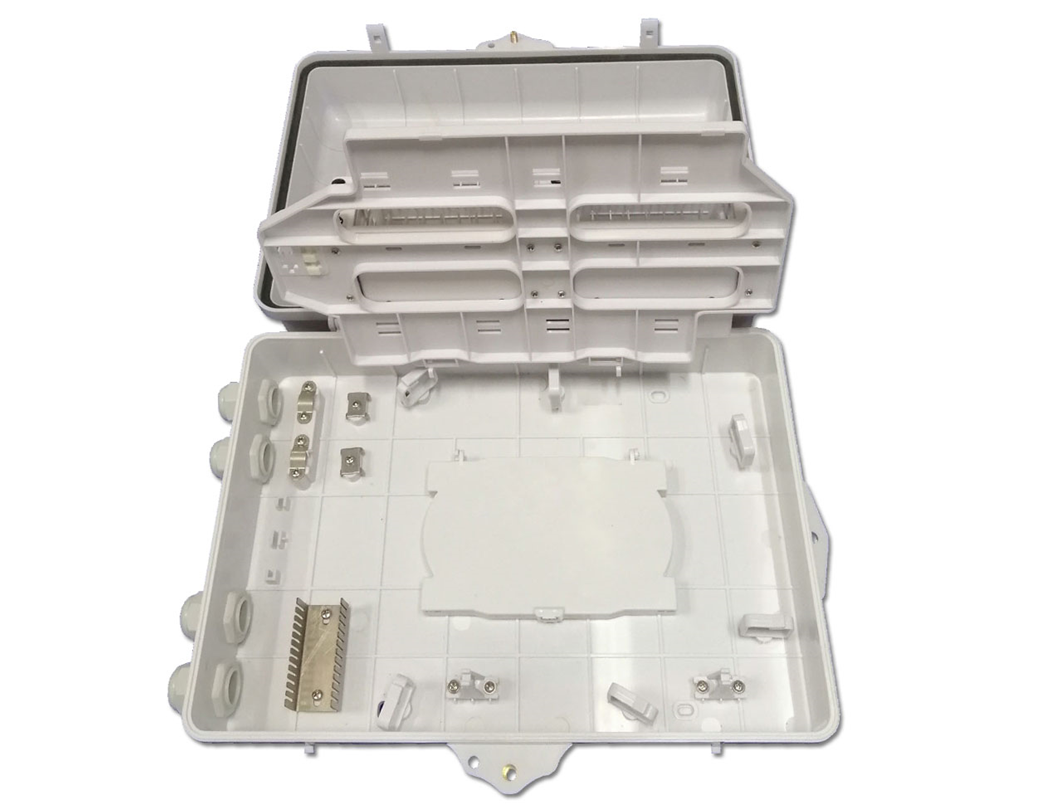

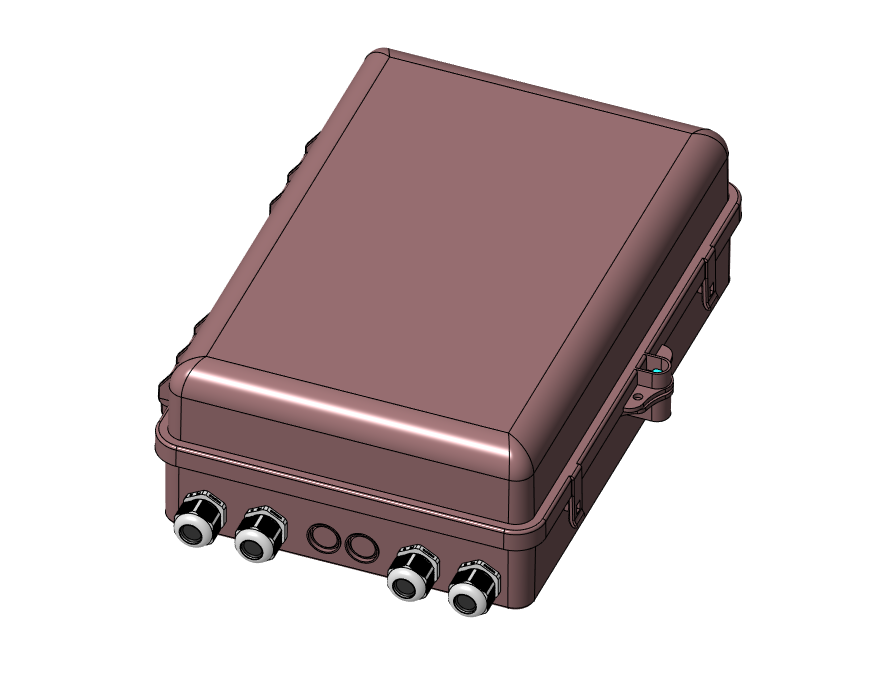

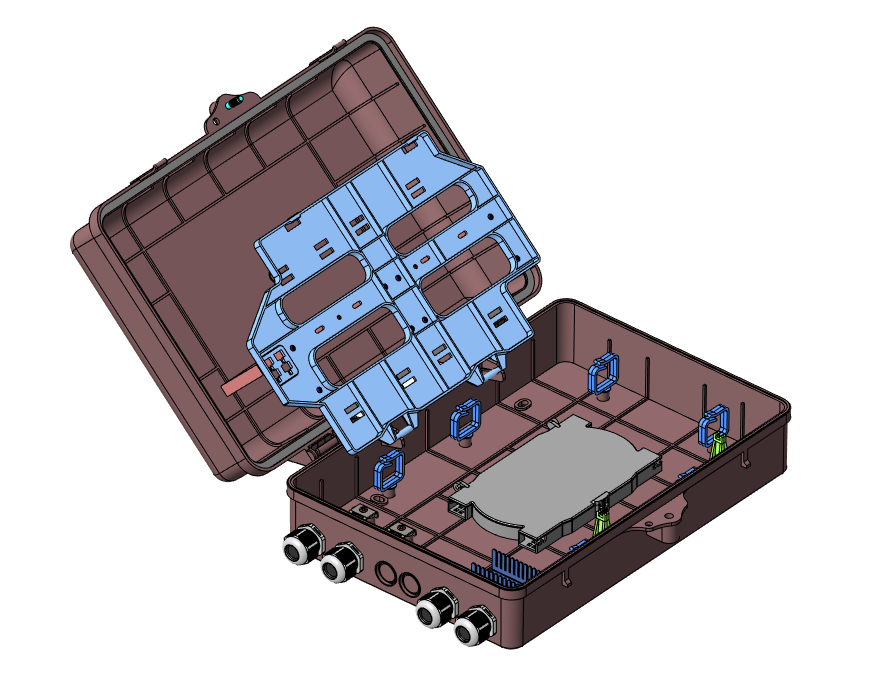

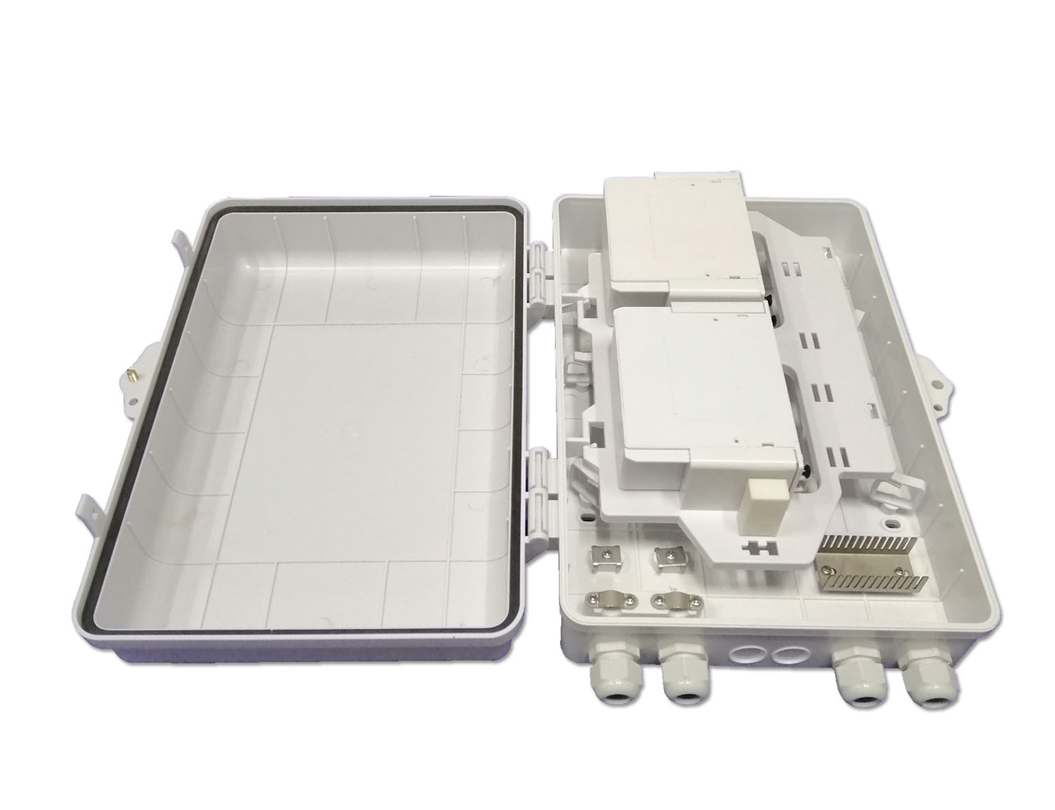

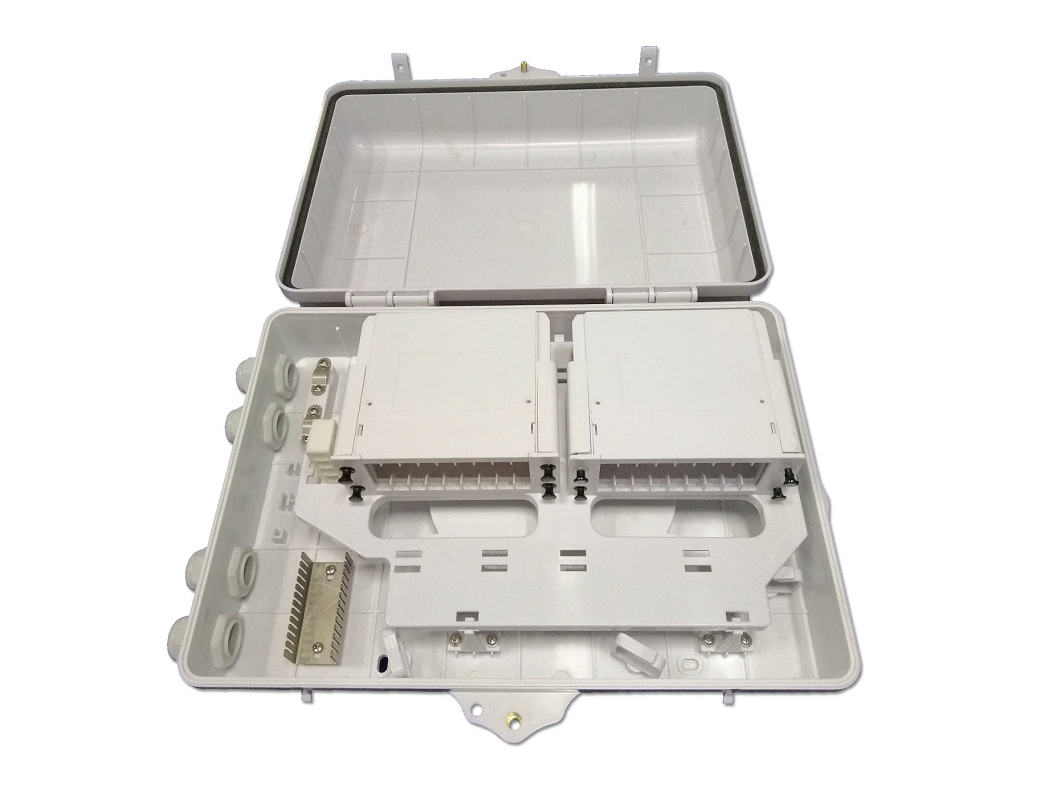

8.Images:
