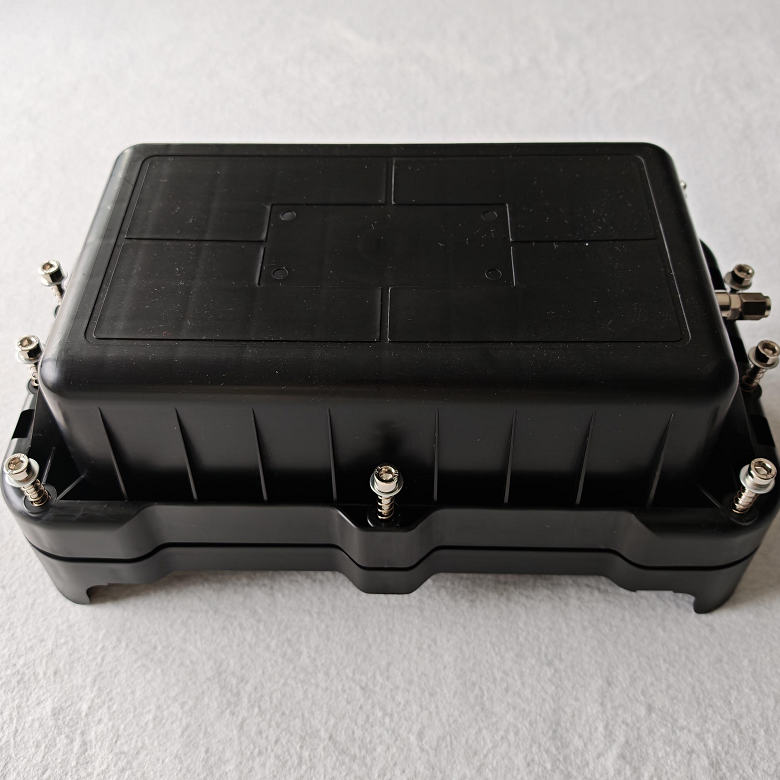

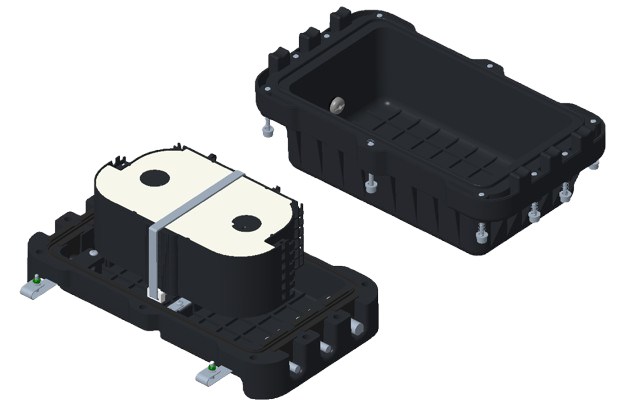

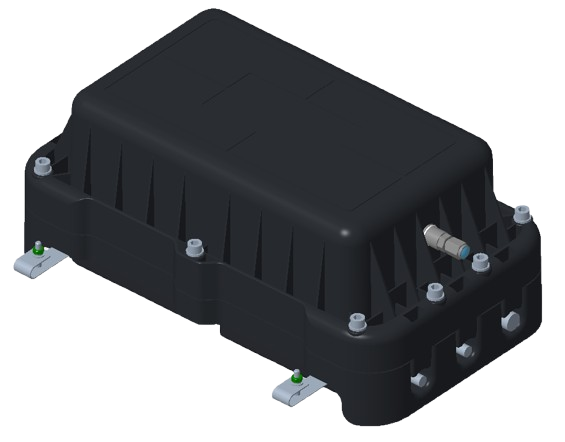

Horizontal Fiber Optic Splice Closure
CH026A
Description:
CH026A is an inline type fiber optic splice closure for optical fiber splicing, cable protection. There is sealing gasket between the cover and bottom. It can be outdoor aerial hang application.
Features:
Reasonable design for cable splicing and protection.
Material: PP plastic
6 cable ports (3 in 3 out) for optical cable entry & exist (4pcs Φ7mm, 2pcs Φ12mm).
Max.6pcs splice tray OST-038, each 24 fibers; max. 144 fibers capacity
With fixing cable strengthen core parts
Dust-proof and waterproof, IP65.
Application: aerial hanged, duct, direct bury
Dimension: (mm)

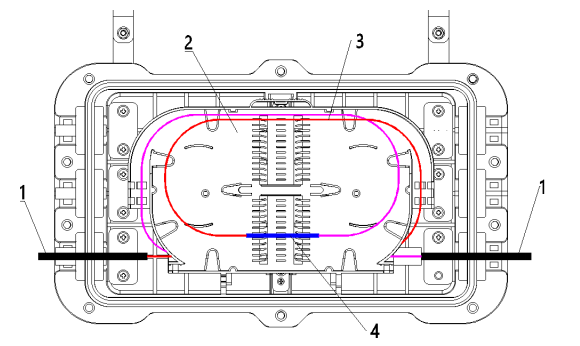

Using instruction:
1. Optical fiber cable 2. fiber optic splice tray
3 Stripped out optical fiber 4. Heat shrinkable protection sleeve
Accessories:
Item | Specification | Qty |
Plastic tube | Outside Ф5mm, thickness 0.6mm, white | 1M |
Heat shrinkable protection sleeve | 60MM*2.6*1.2 | As per capacity |
Cable tie | 3mm*120mm | 10 pcs |
Inner hexagon spanner | S5 | 1 pc |
Cable tie | 5*200mm | 6 pcs |
Aerial hanged kit | CH006-60 | 1 set |
