Horizontal Fiber Optic Splice Closure
CH026
Description:
CH026 is an inline type fiber optic splice closure for optical fiber splicing, cable protection. There is sealing gasket between the cover and bottom. It can be outdoor aerial hang application.
Features:
Reasonable design for cable splicing and protection.
Material: PP plastic
6 cable ports (3 in 3 out) for optical cable entry & exist (4pcs Φ8mm, 2pcs Φ13mm).
Max. 4pcs splice tray, each 24 fibers; max. 96 fibers capacity
With fixing cable strengthen core parts
Dust-proof and waterproof, IP65.
Dimension: (mm)

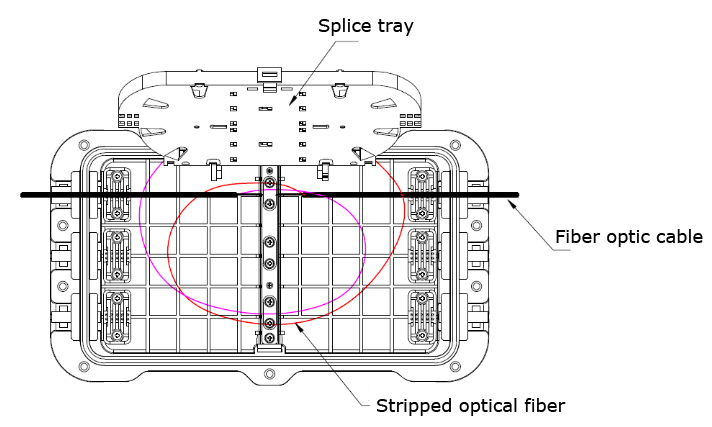

Using instruction:

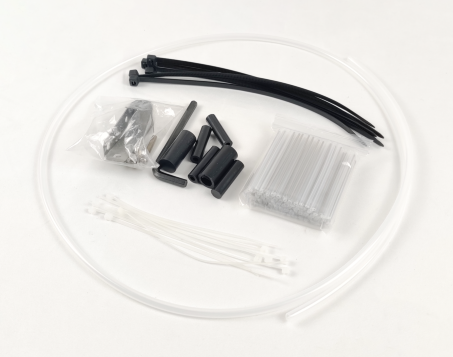

Accessories:
Item | Specification | Qty |
Heat shrinkable protection sleeve | 45MM*3.0*1.5 | As per capacity |
Cable tie | 3mm*120mm | 4 pcs |
Plastic tube | Outside Ф5, white | 1 M |
Inner hexagon spanner | S5 | 1 pc |
Cable tie | 5*200mm | 6 pcs |
Plug cap A | 4 pcs | |
Plug cap B | 2 pcs | |
Aerial hang kit | 1 set |

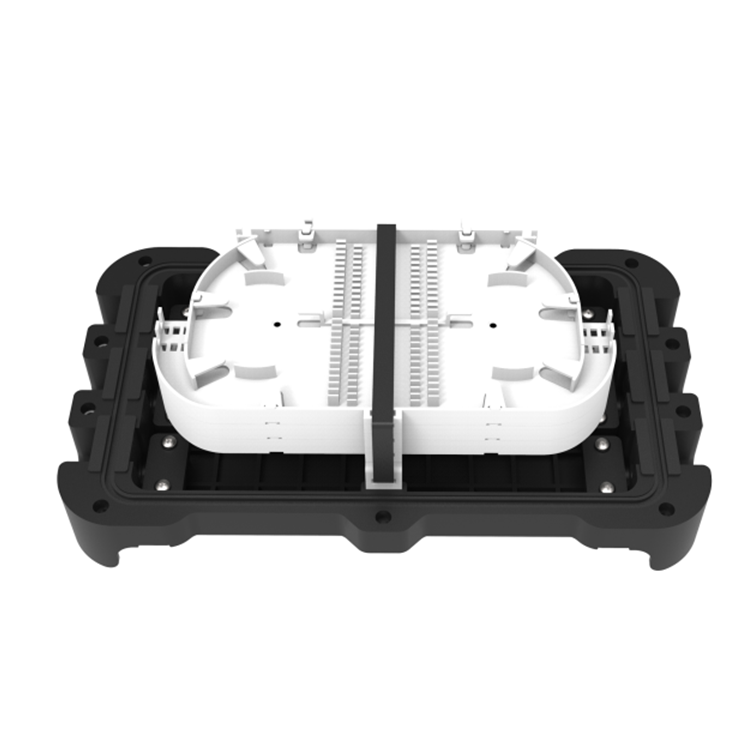

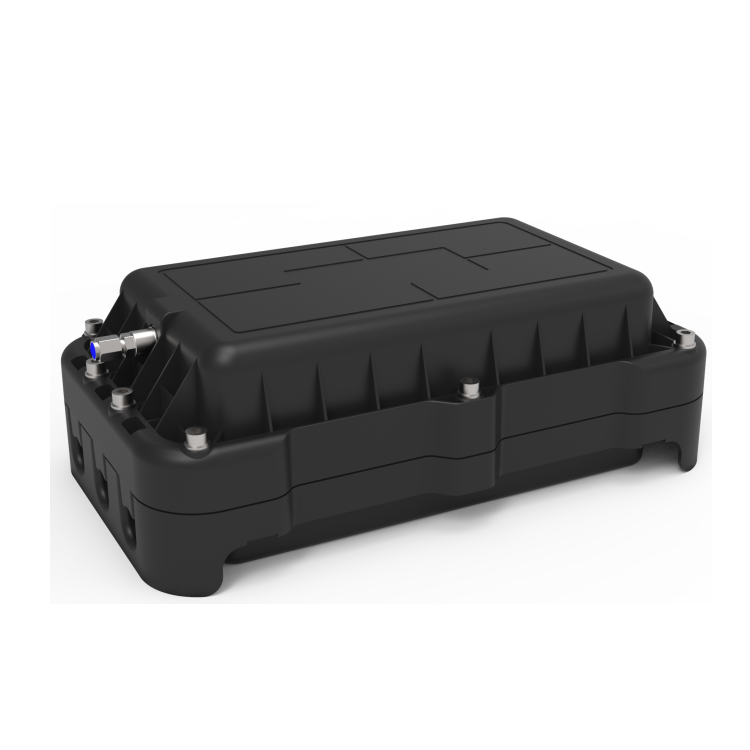

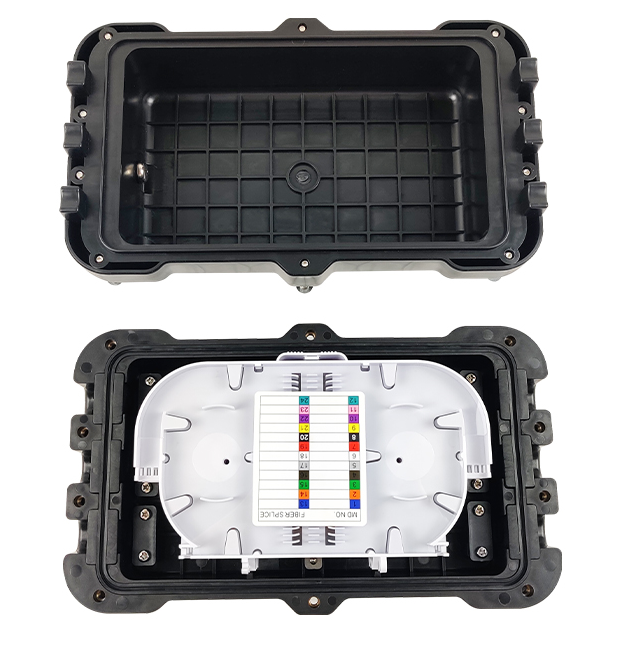

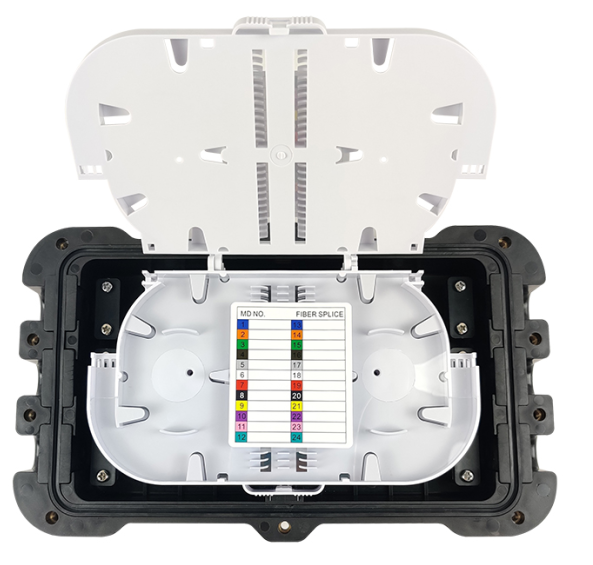

Images:
