Horizontal Fiber Optic Splice Closure
CH025
Description:

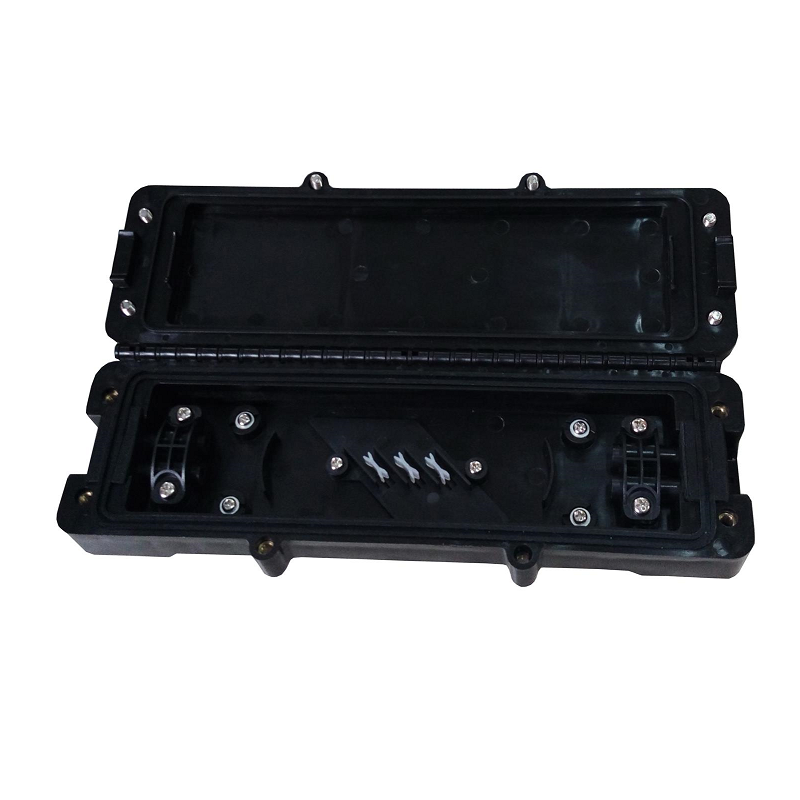

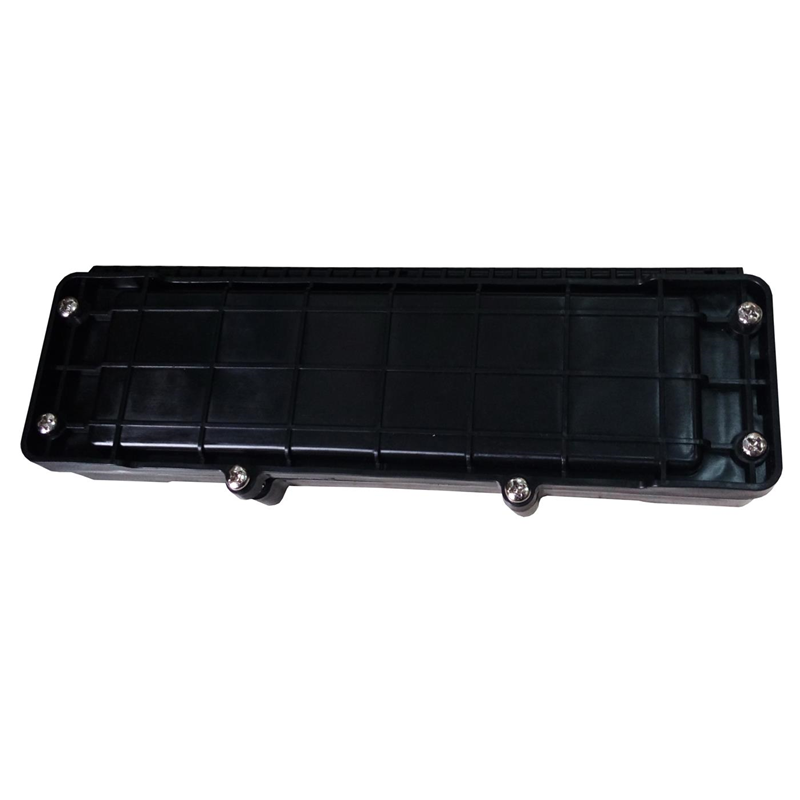

CH025 is a Mini. inline type fiber optic splice closure for optical fiber splicing, cable protection. There is sealing gasket between the cover and bottom. It can be outdoor aerial hang application.
Features:
Small size, reasonable design for cable protection
Material: PP plastic for base and cover; ABS plastic for inside parts.
4 cable ports (2 in 2 out) for max. 12mm diameter optical cable entry & exist
Max. 2pcs splice modules, max. 24 fibers splicing.
With fixing cable strengthen core parts
Dust-proof and waterproof, IP65.

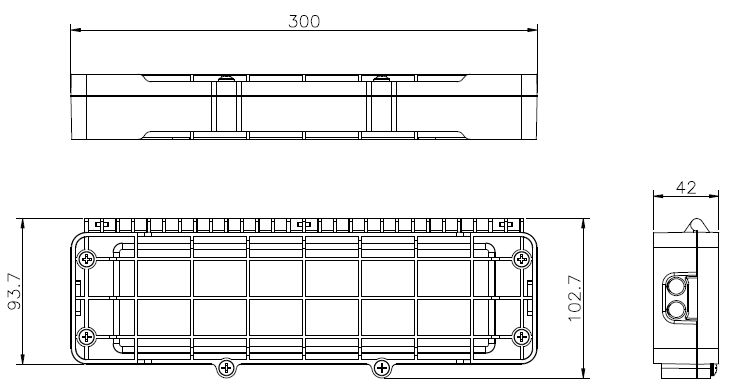

Dimension:
300x102.7x42mm
