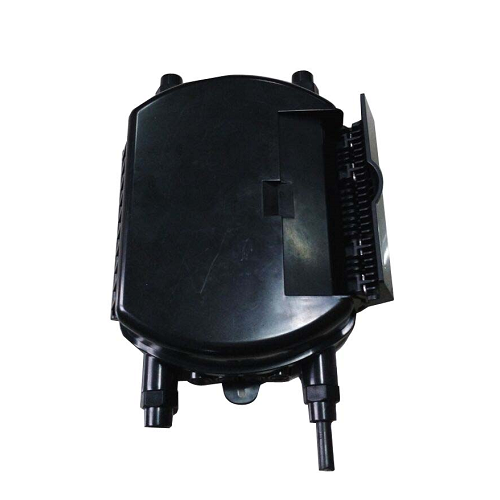

Horizontal Fiber Optic Splice Closure
CH018A
Description:
CH018A is made of high-quality ABS material. It is widely applied to the splicing and distributing variable optical cables.
1.Product Features:
Special double D box body design, light weight, compact structure.
Rotary Internal structure,super-stratum for splicing and distributing, substratum for cable arrangement.
Cable input&output is mechanical sealing
Protection grade reach IP65.
Box body use ABS material.
2.Dimension：

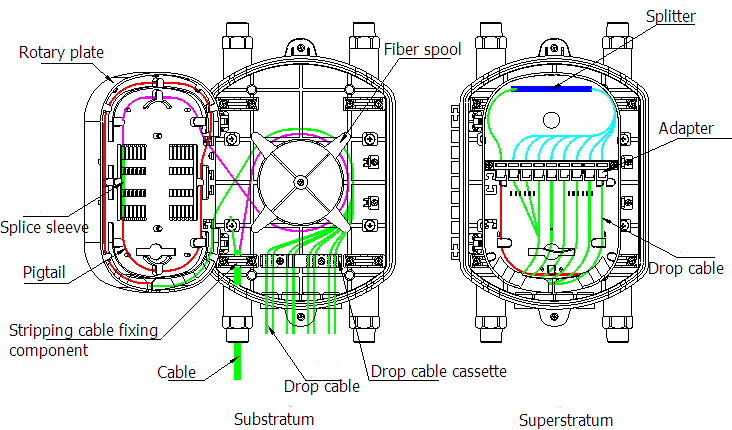

3.Cable arrangement:

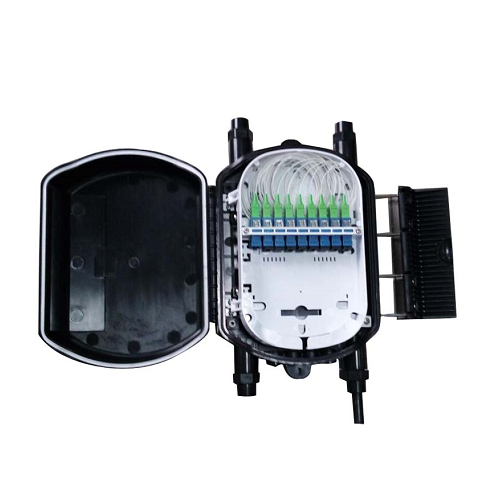

4.Configuration:
Product Model | Fiber count | Splitter | Splice tray Model & Qty | Cable port diamter |
CH018A | / | 1*8 PLC (steel tube type) | / | 2pcs ￠8mm;2pcs ￠12mm;8pcs ￠3mm |
5.Packing information:
Carton size | G.W. | Qty/ctn |
39*30*44cm | 15KG | 10pcs |
