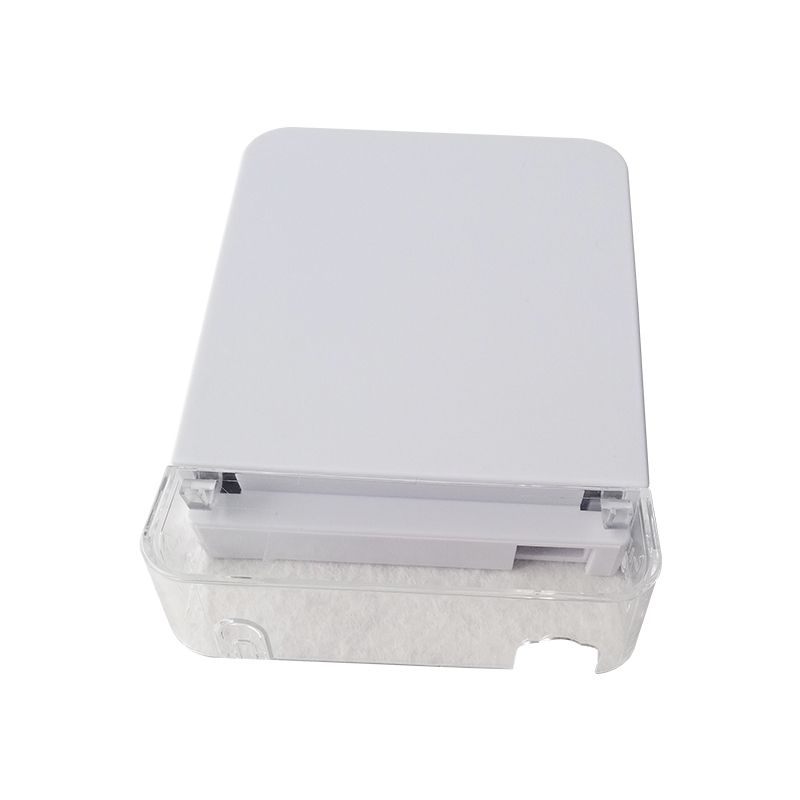

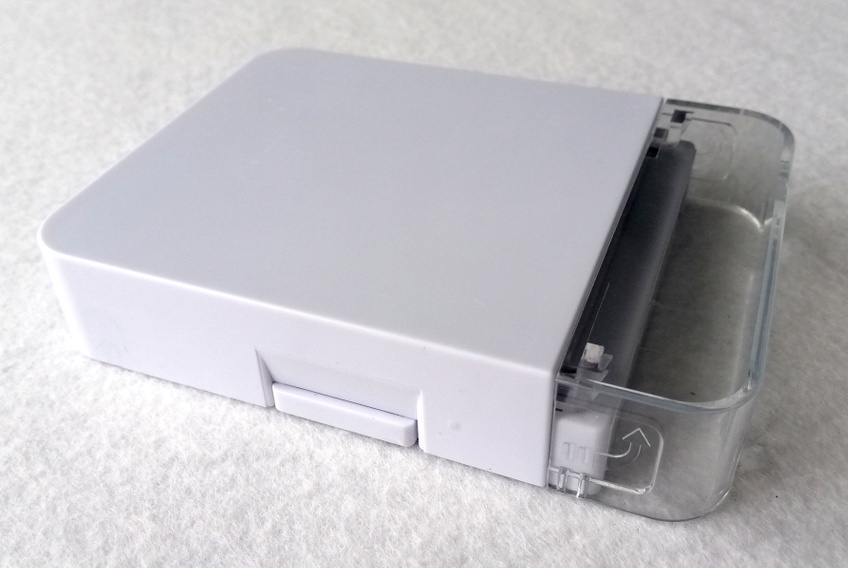

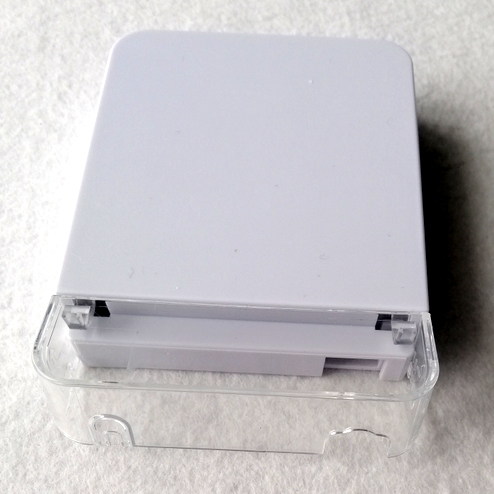

Fiber Optic Face Plate FP-026

Fiber Optic Face Plate FP-026 is used in FTTx network installation for fiber splicing, distribution and connection. It is indoor wall mounted for fiber protection and management.

Features:

High quality ABS plastic, moisture proof, dust-proof, anti-aging, durable

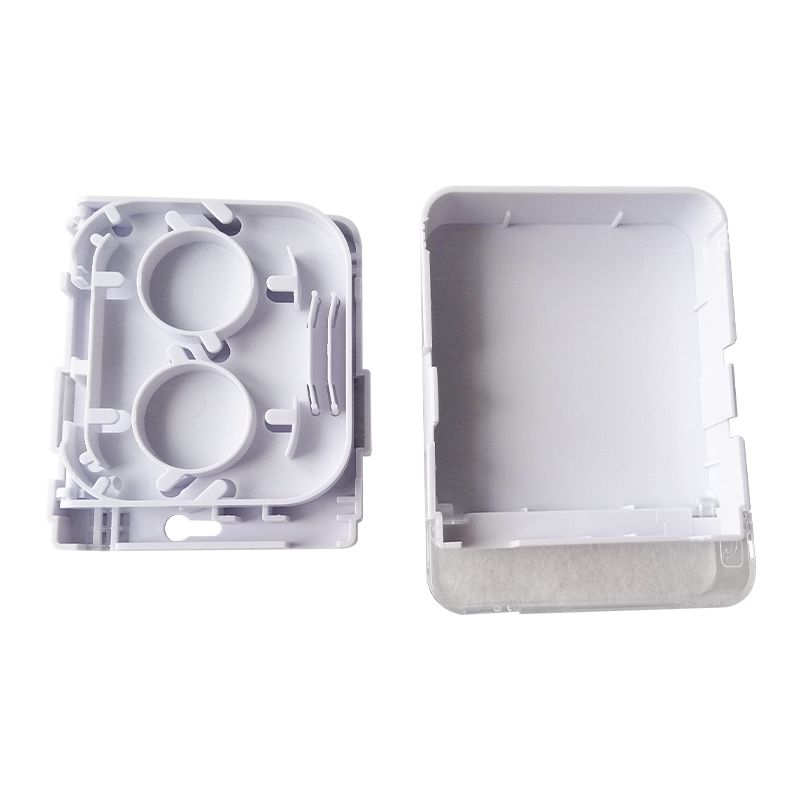

The reasonable internal design meets the minimum bending radius of the fiber

2 cable ports meet diameter 5-10mm or 2*3mm flat drop cable entry or exit

Can load 1pc SC simplex adapter or 1pc LC duplex adapter

Splice tray is flip design, convenient to use and maintenance

Transparent PC front cover, convenient observation

Dimension: (mm)

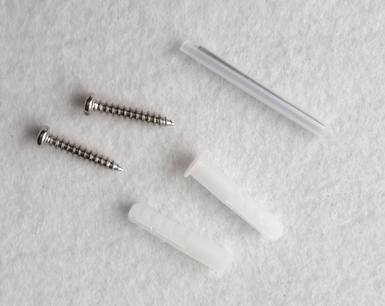

Accessories:

1pc Heat shrinkable protection sleeve 40*3.0*1.5mm

2pcs Round head self tapping screw: C-type 3.5 * 25mm

2pcs Plastic expansion pipe Ф6mm

Packing information:

60pcs per inner carton, 3pcs inner cartons(180pcs) per master carton, 49x37x31cm

Pictures:
