FP-020
Features:
Material: ABS plastic
Color: RAL9003 or others
2 SC simplex without flange adapter ports
With Mini. Rotary splice tray for 4fibers splicing
Wall mounted or desktop application
Specification:
Model | Dimension | Material | Adapter port | Capacity | Application |
FP-020 | 83.29x105x24.5mm | ABS plastic | 2 ports SC simplex without flange | 4 fibers | Indoor wall mounted |

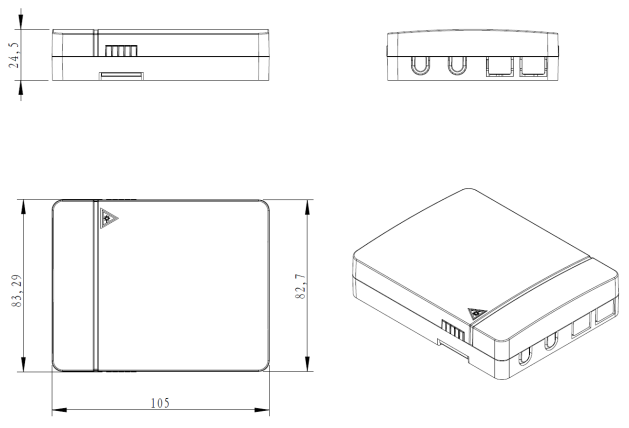

Drawings:

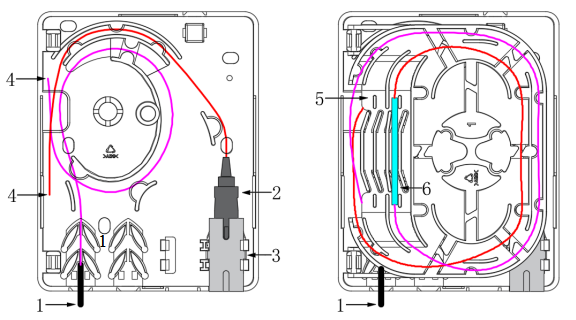

Instruction:
1-Fiber optic cable 2-Pigtail 3-Adapter 4-Pass the cable into the splice tray
5-Splice tray 6-Splice sleeve
Accessories:
Item | Name | Specification | Qty |
1 | Fiber optic heat shrinkable protection sleeve | 45mm*3.0*1.5 | As per using capacity |
2 | Cable tie | 3mm*80mm white | 3pcs |
3 | Plastic expansion pipe | Ф6mm white | 2pcs |
4 | Screws | C type 4*25 | 2pcs |
Packing information:
Carton Qty | Weight (KGS) | Carton Size |
180pcs per carton | About 16 | 45.5x39.5x30cm |
