FP-016
Basic Information:
2 Product Material:ABS Plastic
2 Installation method: wall mounted or desktop
2 Color:white
2 Product features:Two SC simplex adapters can be loaded
2 Fused fiber type,fuse the fibers on top of the flip plate

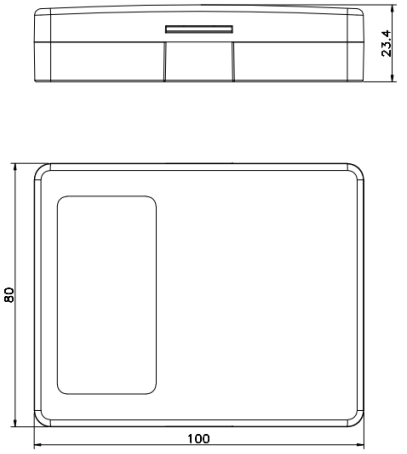

Dimension :(MM)
Specification:
Model | Dimension | Material | Adapter port | Splicing Capacity | Application |
FP-016 | 80x100x23.4mm | ABS plastic | 2 SC simplex without flange | 2 - 4 fibers | Indoor wall mounted; with inner tray |

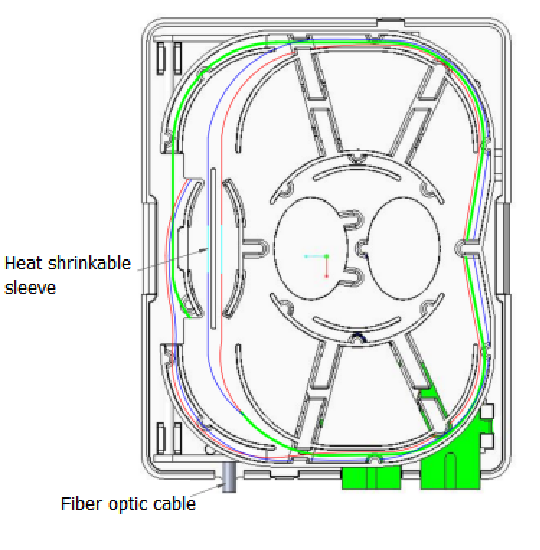

Fiber Arrangement Drawing:
Accessories:
