Fiber Optic Wall Plate
FP-015
Description:
Fiber optic wall plate FP-015 is indoor wall mounted fiber optic box that for end user, capable to handle fiber fusion, fiber cables and pigtails. It is used in FTTH project.
Features：
Radian appearance makes it slinky
ABS plastic, light weight, reasonable design
Support MM and SM fiber connection
2 ports for SC simplex, LC duplex adapters
With hinged cover, easy to open and close
The bottom part of cover can turn up, easy for fiber operation
Specification:
Model | Dimension (mm) | Material | Adapter port | Splicing capacity | Application |
FP-015 | 86.3x110.6x23 | ABS plastic | 2 ports for SC simplex or LC duplex adapter | Max. 4 fibers | Wall mounted; With hinged cover |
Application:
FTTH
Optical communication system

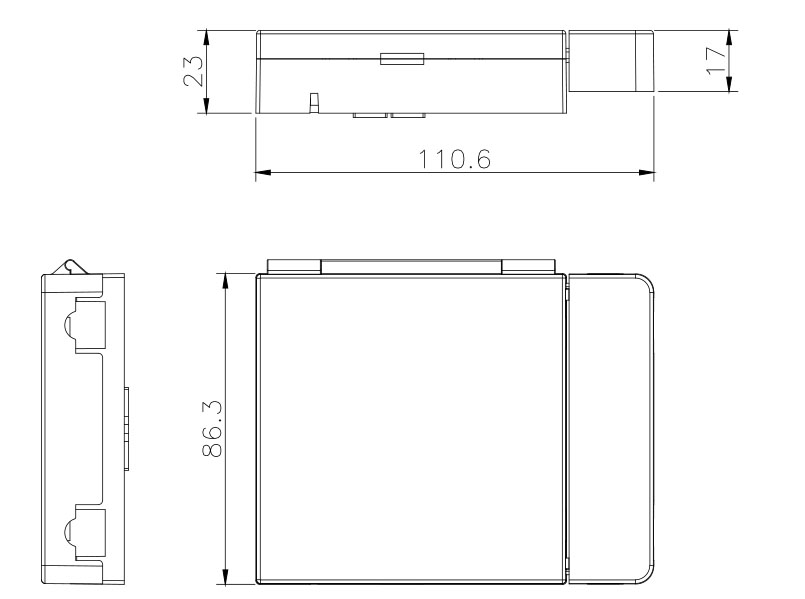

Drawings: (mm)
Accessories:
Item | Picture | Qty | Remark |
Wall mounted screw & bolt |
| 2 sets |

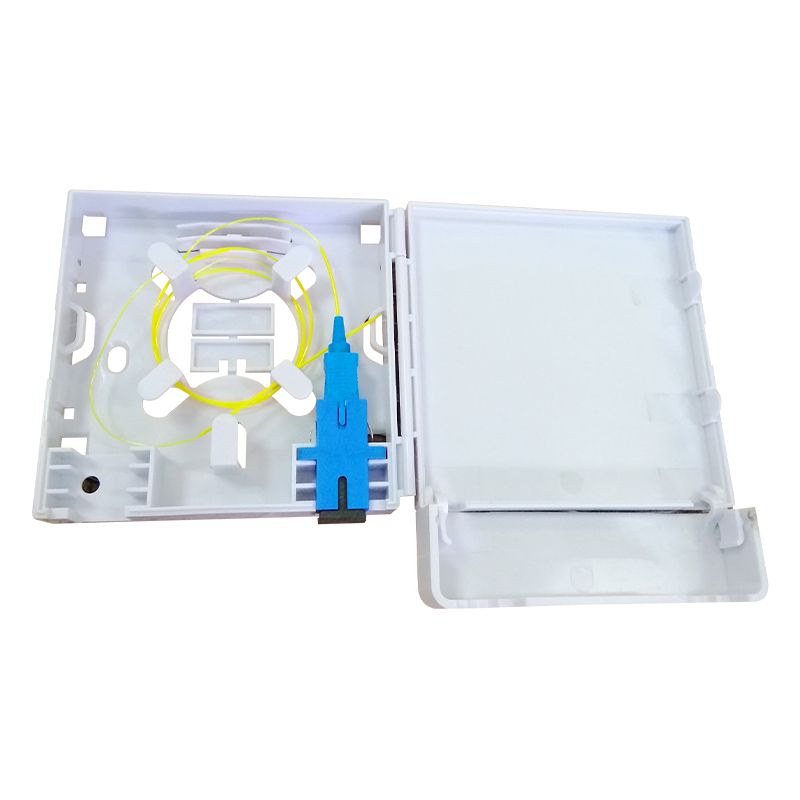

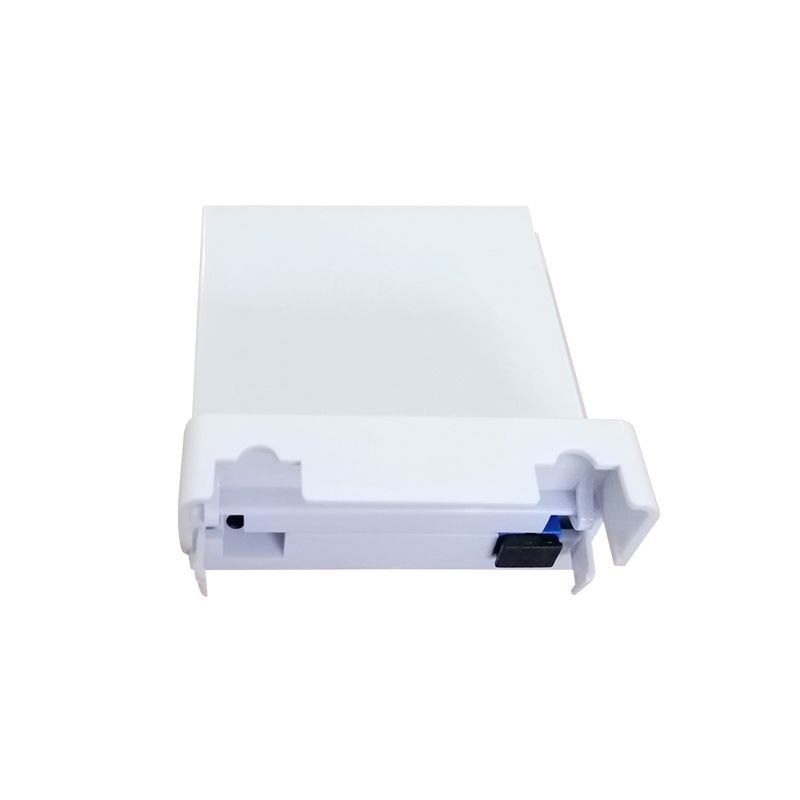

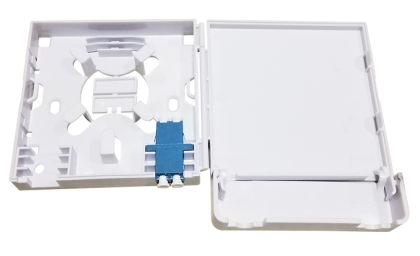

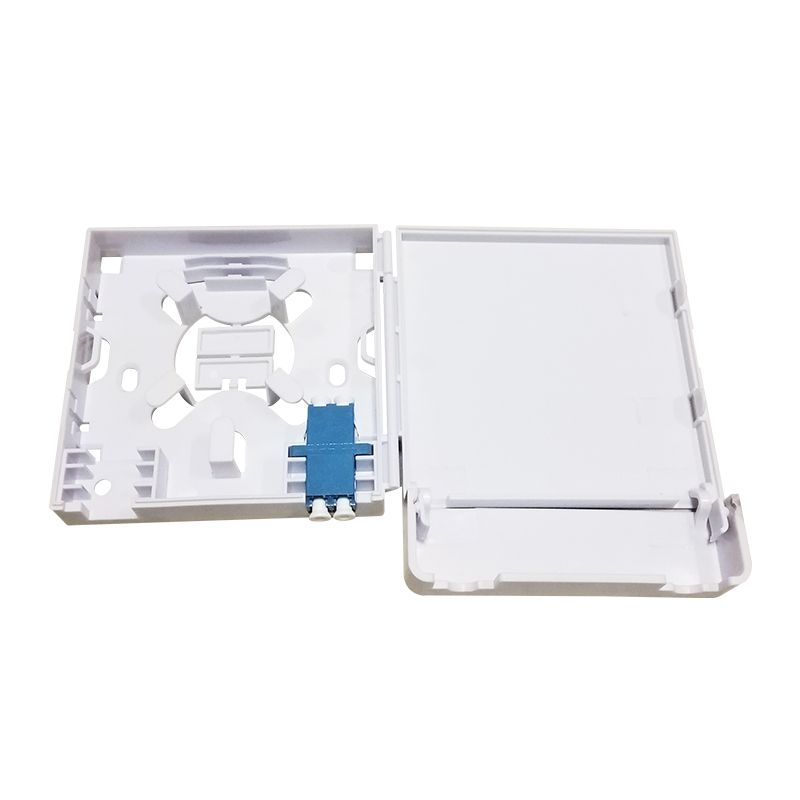

Image:
