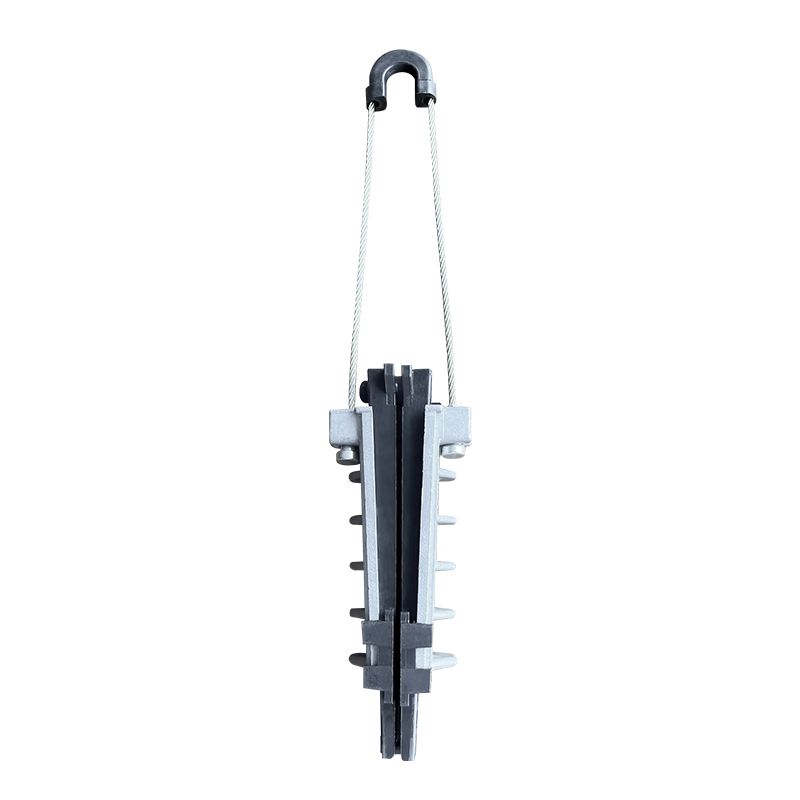

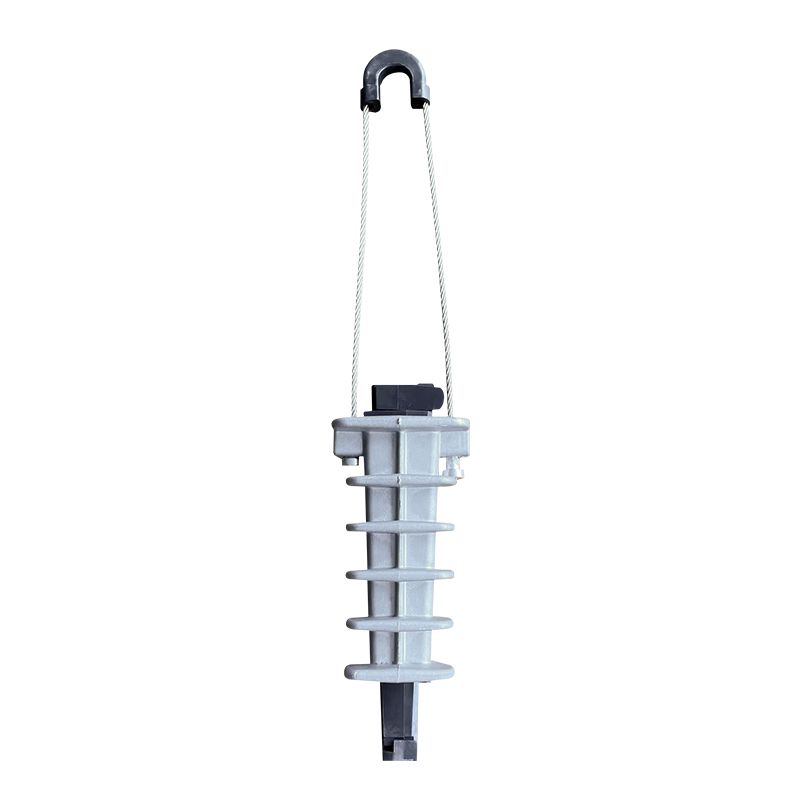

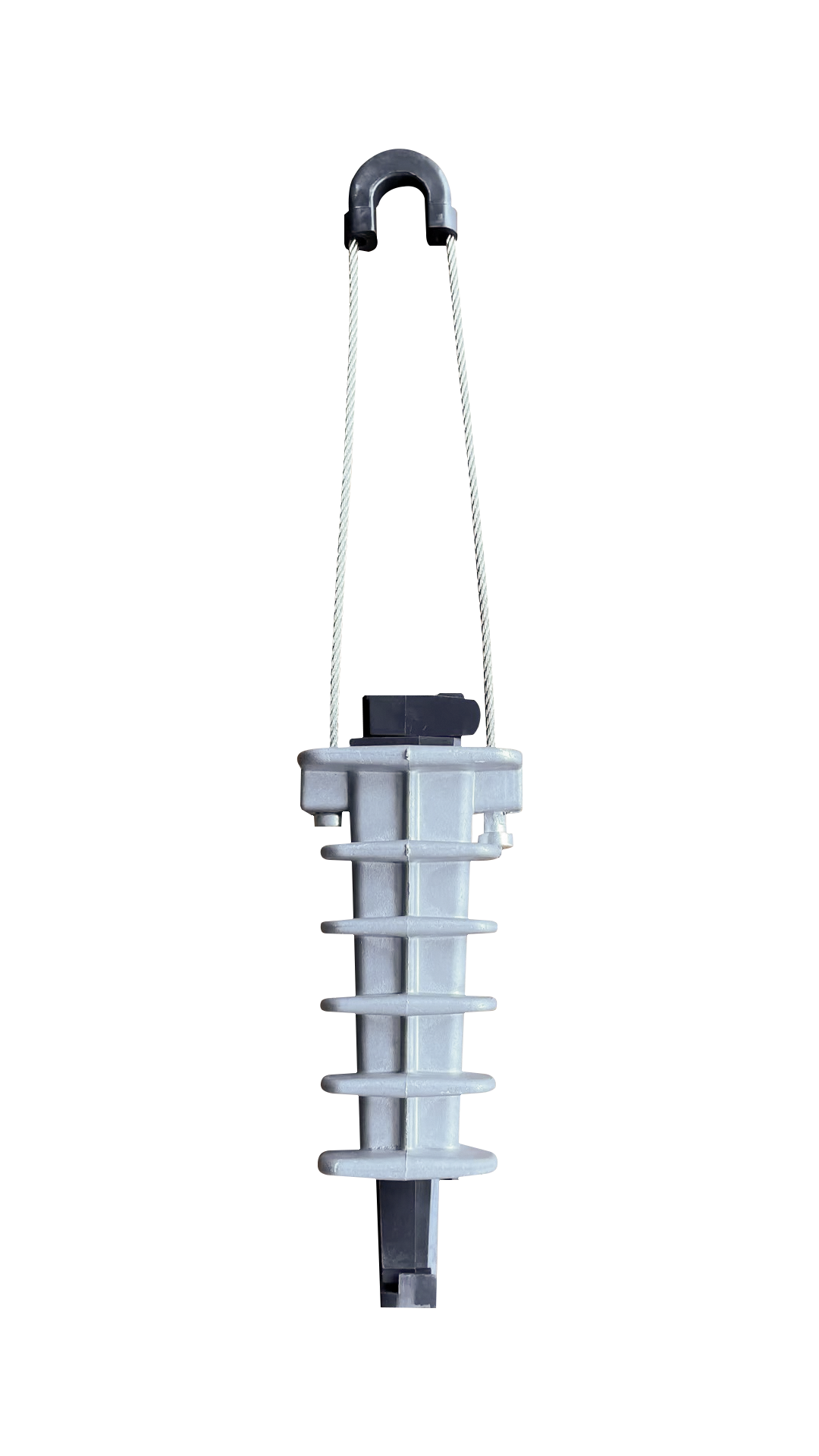

Insulation Optic Fiber Tension Clamp

LTC-08

Basic Information：

Product material: The outer shell is made of high-quality aluminum alloy, the internal plastic part is made of nylon.

Product Overview: Used in laying outdoor network installation lines to stretch or fix leather optical cables on poles or building exterior walls; suitable for circular optical cables with a diameter of 10-13mm.

Features:

a. High-quality aluminum alloy, nylon, strong and durable;

b. The product has passed a series of tests, Max. tensile strength 8000N;

c. Easy to operate, installation, no other installation tools required;

d. The metal shell adopts metal infusion, which is more sturdy and durable;

e. The internal clamping parts are made of high-quality nylon injection molding, which is sturdy and wear-resistant, can maintain stability at high  temperatures, and has good toughness and impact resistance;

f. The steel wire rope is made of φ 4.0 stainless steel 304 material, with high strength and salt spray resistance

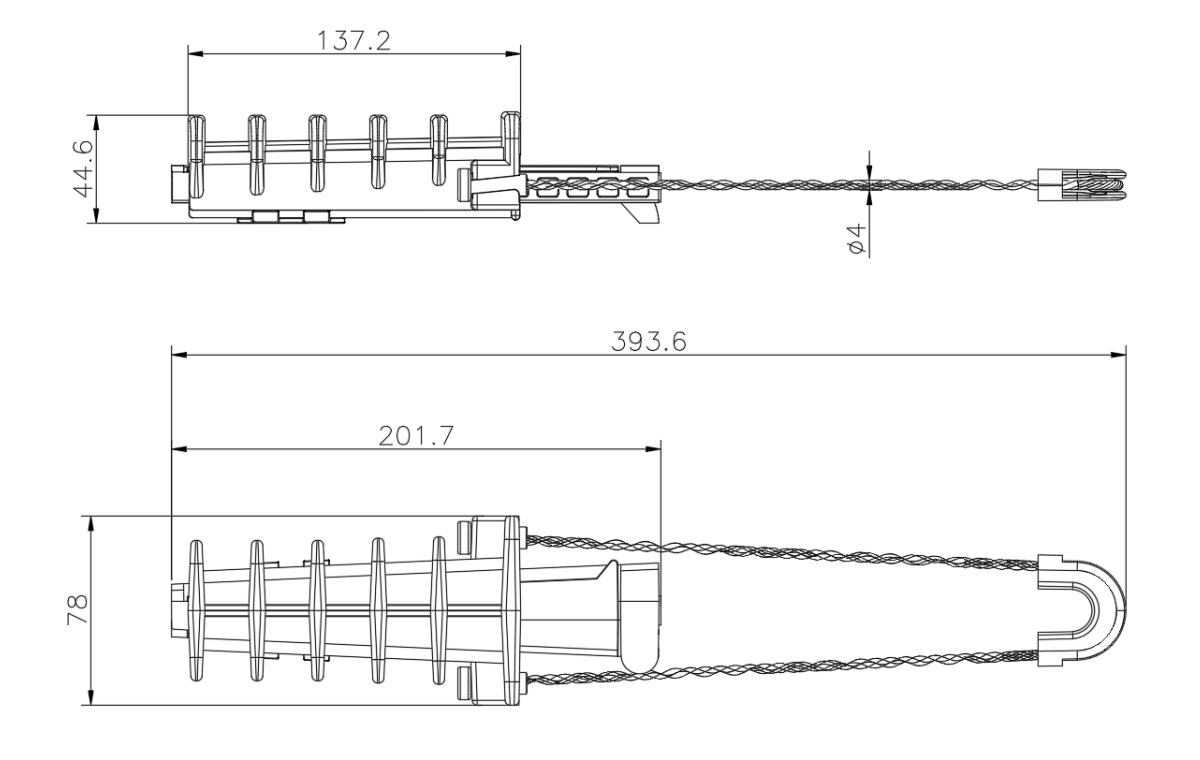

Dimensions：

Packing informaiton:

30pcs per carton, 40x32x25cm, about 12.9kgs.
