Dome Fiber Optic Splice Closure
CV037
1.Basic information

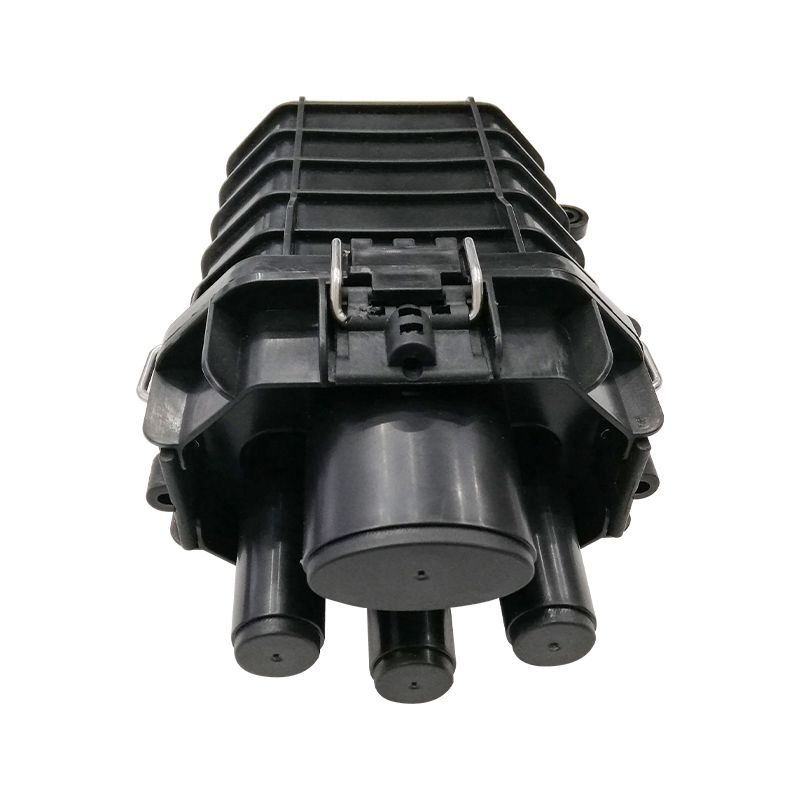

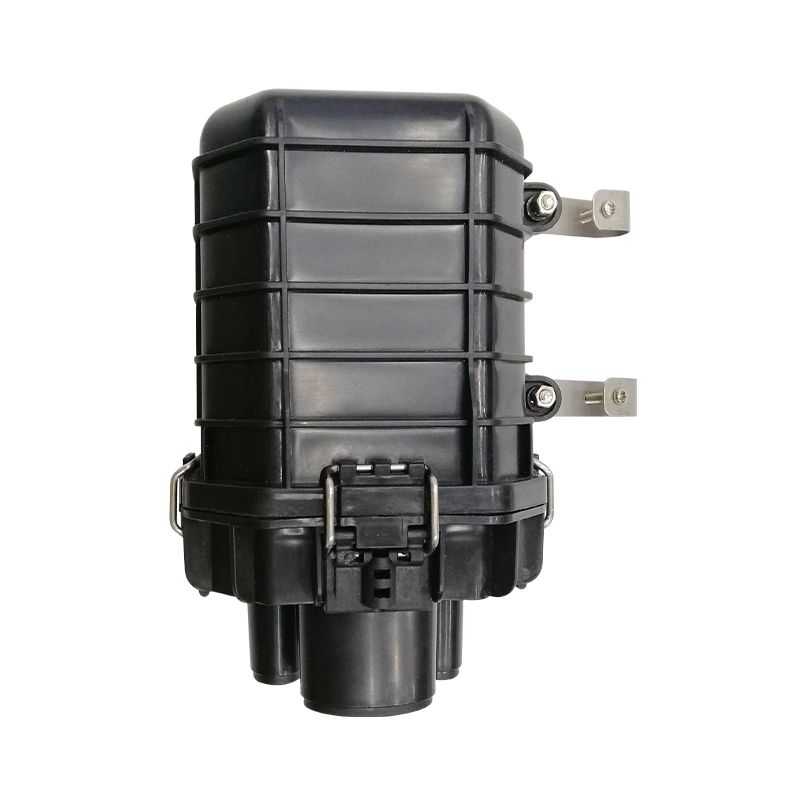

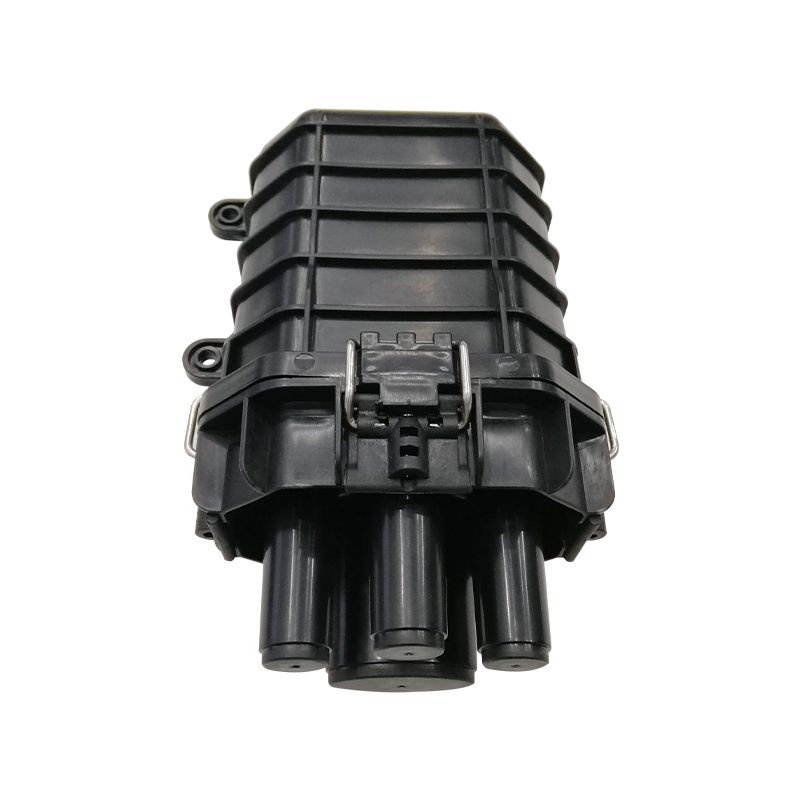

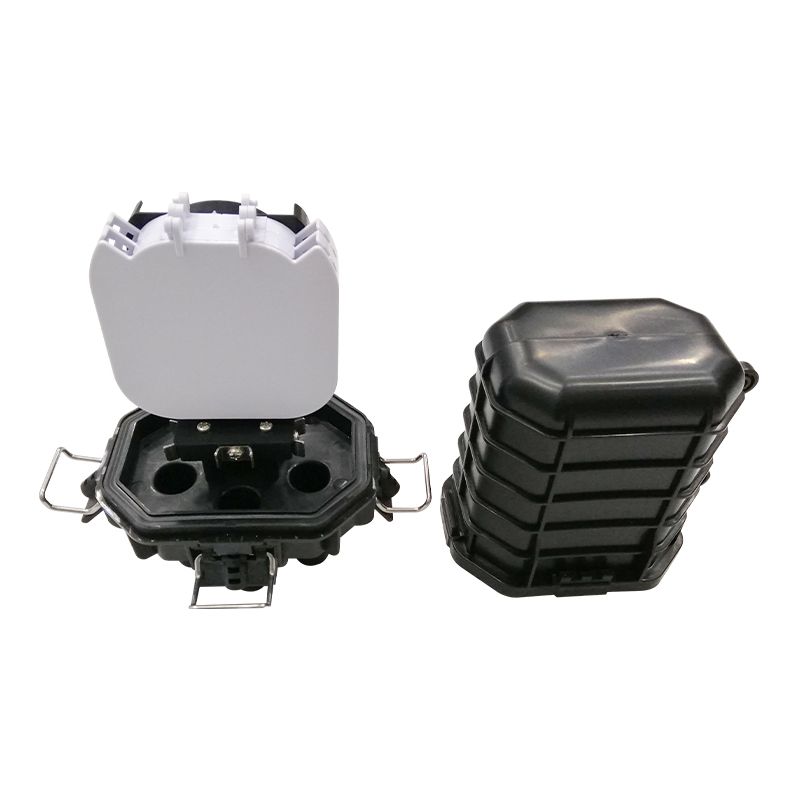

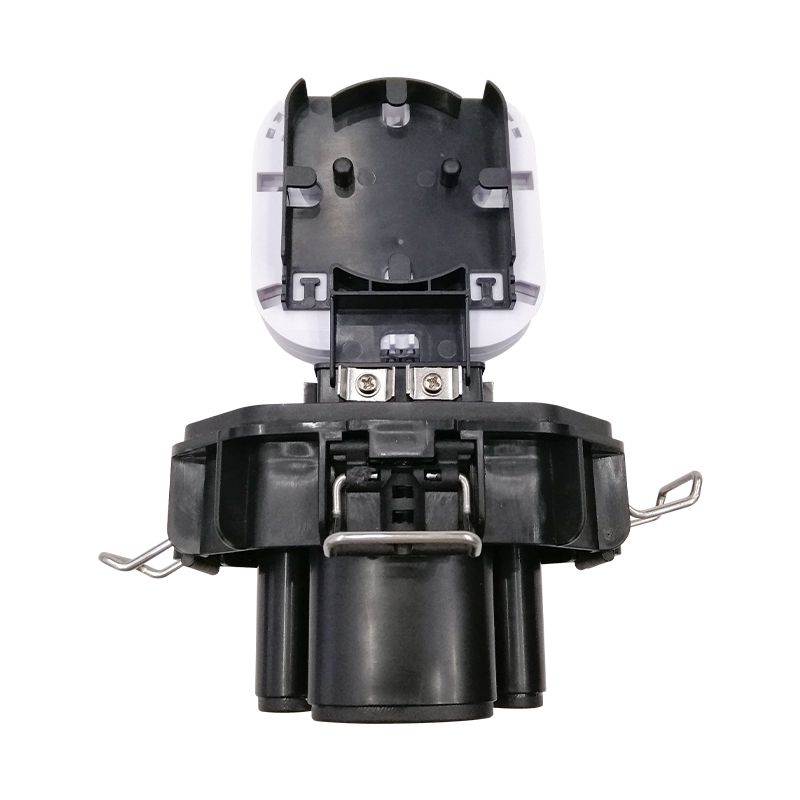

CV037 is a Mini. dome fiber optic splice closure with 1 oval & 3 round ports for max. 48 fiber splicing and connection. It can be aerial hanged, wall mounted, duct application.
2.Features:
Impact resistant PP material
Heat shrinkable sealing structure
Black color, IP68 waterproof
4.Aerial hanged, wall mounted, duct application
1pc 21.3*43.8mm oval cable port support cable entry without cutting
3pcs Φ16mm round cable ports
Max. 48 fibers, with 1 cable storage tray

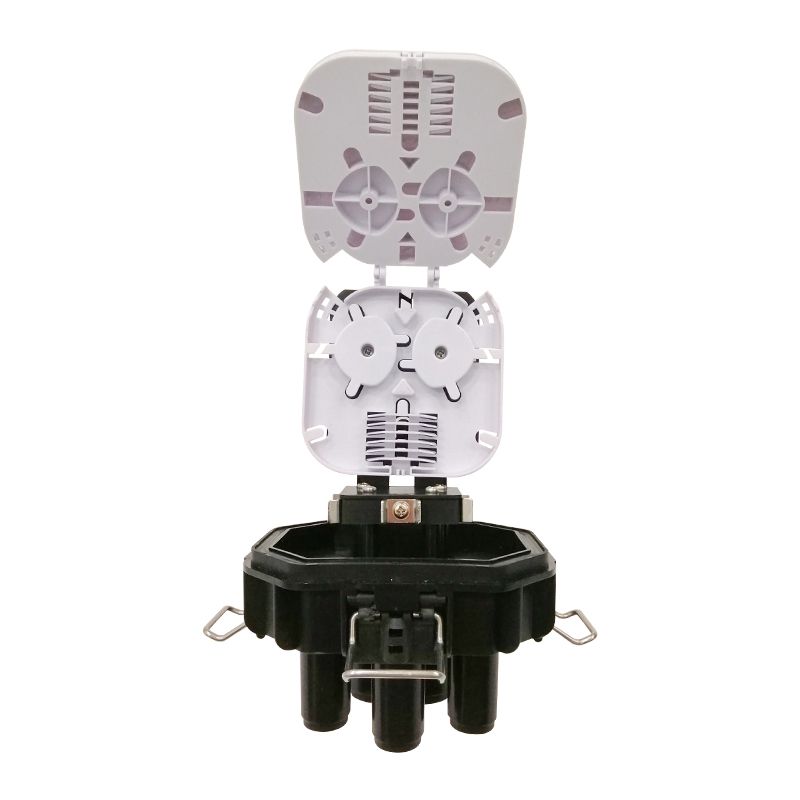

Can load max. 4pcs splice trays OST-084, each 12 fibers
3.Specification:
Model | Dimension | Material | Splice tray Qty | Max. capacity | Cable port | Application |
CV037 | 147.3*104*207.6mm | PP | Max. 4pcs | 48 fibers | 1 oval + 3round ports | Aerial hanged, wall mounted, duct |
4.Packing information:
Carton type | Carton size (CM) | Weight (KG) | Qty per Carton |
Inner carton | 21.5x15.5x11 | 0.85 (0.45+0.4) | 1pc per carton |
Master carton | 45x33x36 | 11.7(0.85*12+1.5) | 12pcs per carton |
5.Accessories:
Item | Name | Specification | Qty |
1 | Heat shrinkable protection sleeve | 45*2.6*1.2mm | As per using capacity |
2 | Heat shrinkable tube | Ф25*100mm | 3pcs |
3 | Heat shrinkable tube | Ф45*120mm | 1pc |
4 | Cable tie | Nylon 3mm*120mm, white | 6pcs |
5 | Aerial hanged kit | 1 set |
