Fiber Optic Terminal Box
OTB-0208H
1. Product Description:
It is an outdoor fiber optic terminal box with 3 U-shape cable entry ports and 9 output ports for fiber distribution. It is used for loading 1pc 1x8 cassette splitter.
2.Features:
Material: ABS plastic
IP standard: IP65
Color: white or black
Cable ports: 3 U-shape cable ports for Max.φ14mm cable entry, 9 output ports
Can load 1pc 1x8 splitter cassette
Application: outdoor wall mounted or pole mounted
3.Specification:
Model | Dimension (mm) | Material | Adapter port | Splicing Capacity | Cable port | Application |
OTB-0208H | 193.6x2275x54.8 | ABS plastic | No | 8 fibers | 3 U-shape port, 9 output ports | Outdoor wall mounted, Can load 1pc 1X8 splitter cassette |

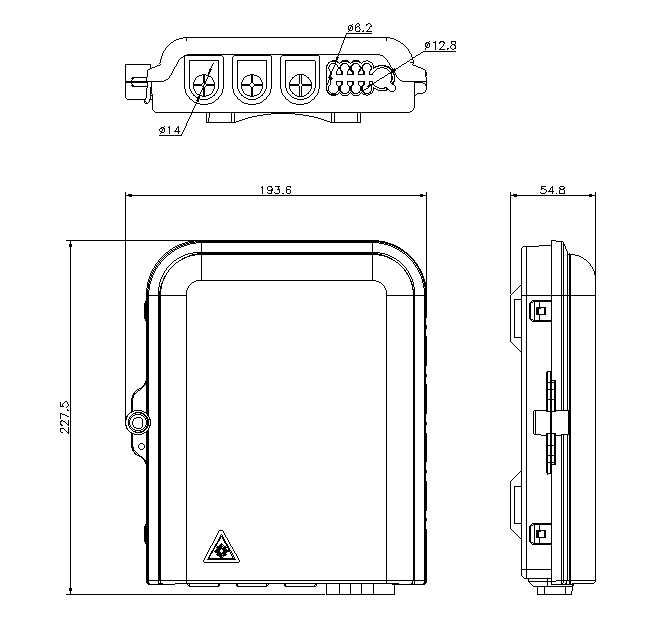

4.Drawings: (mm)

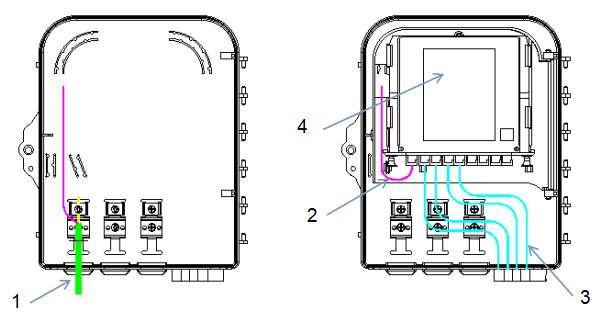

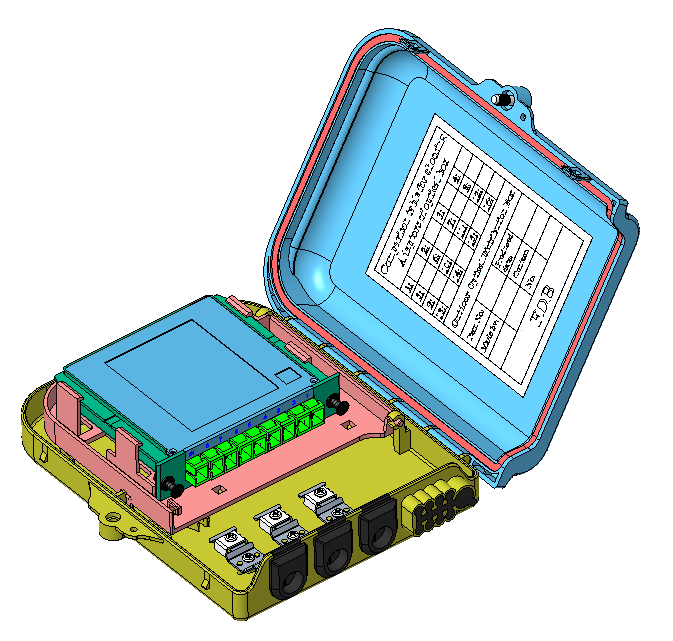

5.Instruction:
1. Input cable 2. Stripped optical cable 3. Output cable 4. Splitter cassette
6.Accessories:
| Item | Name | Specification | Qty |
1 | Cable clamp | 10-16, stainless steel | 3pcs |
2 | Nylon cable tie | 3*120mm, white | 6pcs |
3 | Key | 1pc | |
4 | Heat shrinkable protection sleeve | 60*3.0*1.0mm | 4pcs |
5 | Round Self tapping screws | C type, 4*30mm, metal | 4pcs |
6 | Plastic expansion tube | Ф6mm, plastic, white | 4pcs |

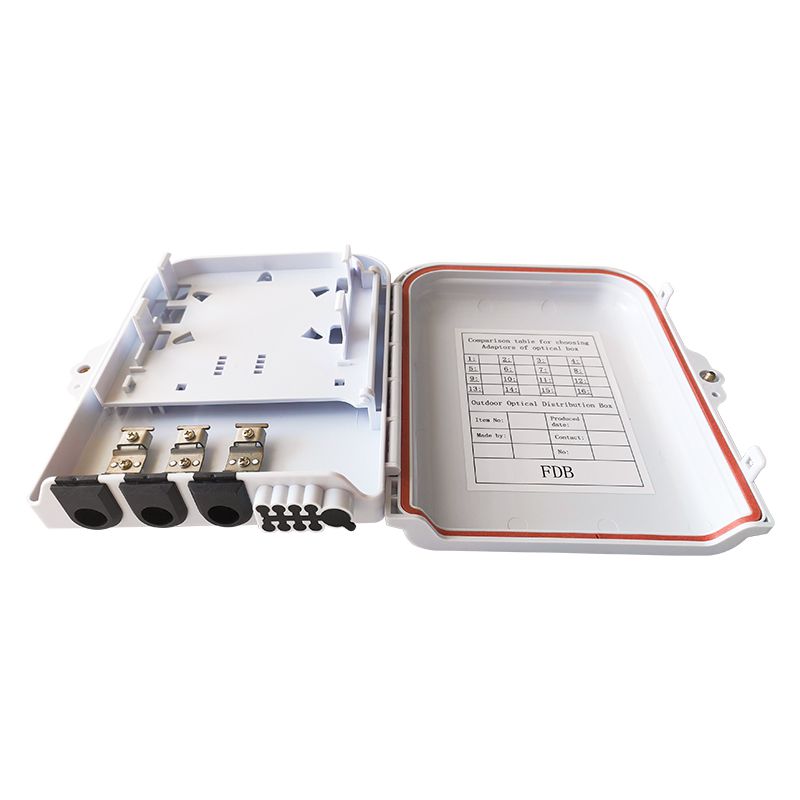

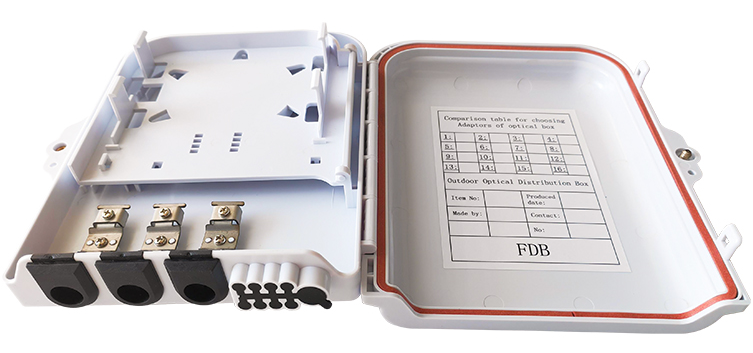

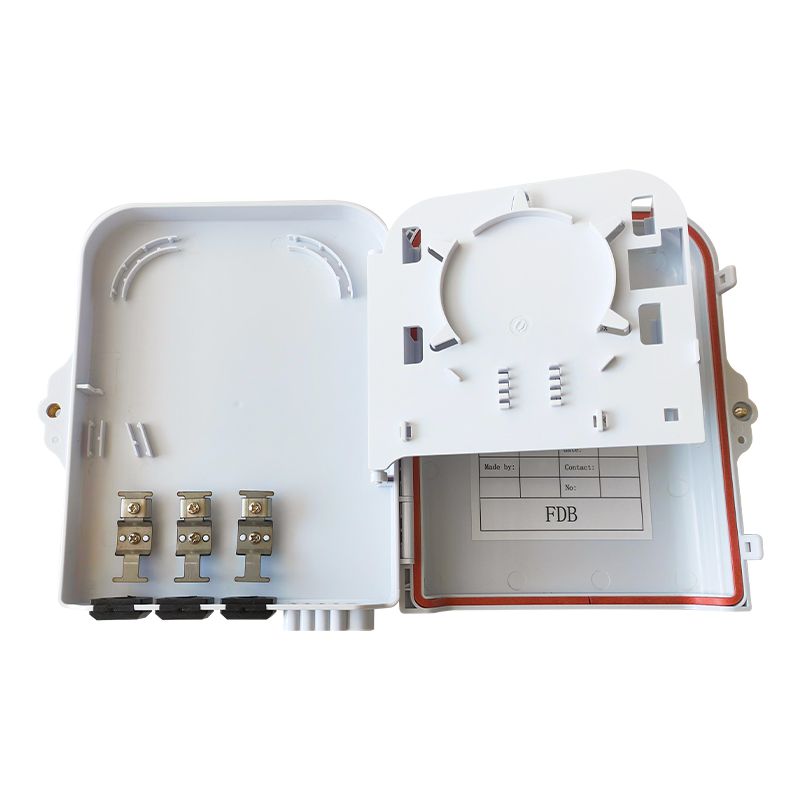

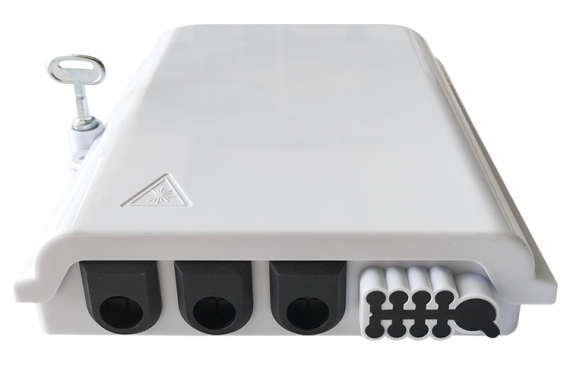

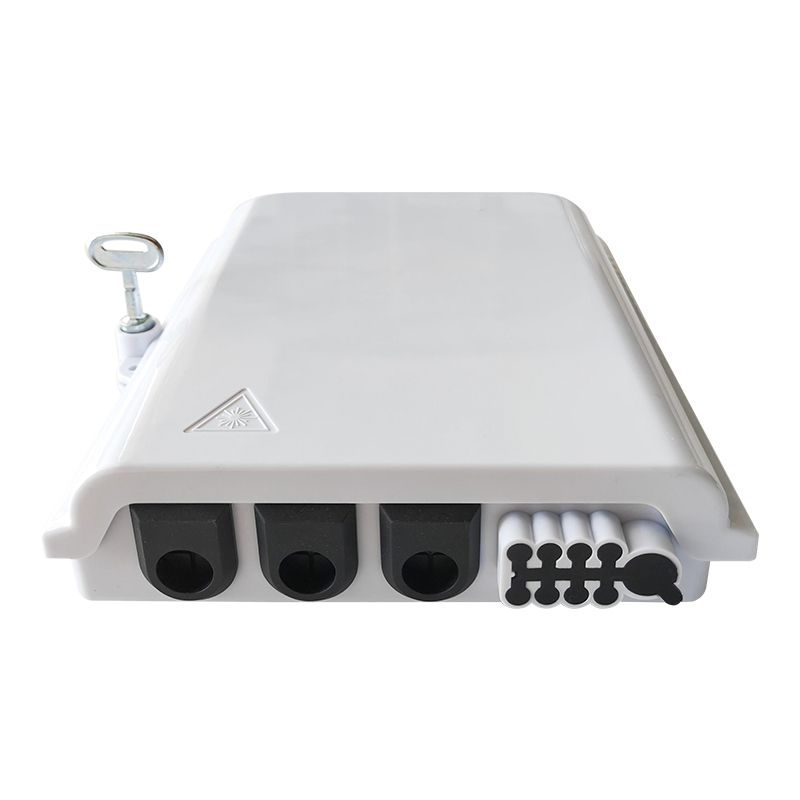

7.Photos:
