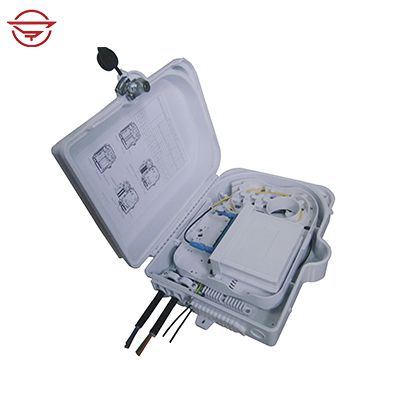

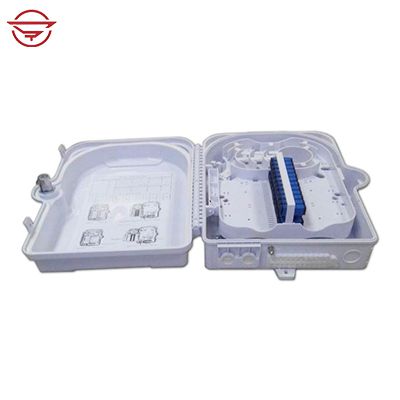

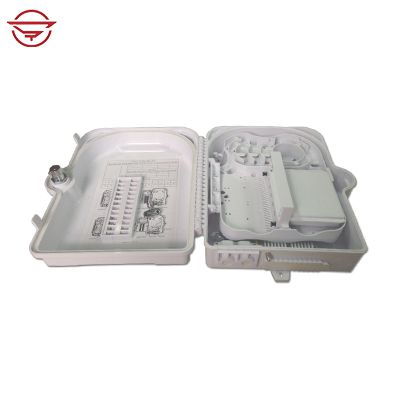

Fiber Optic Terminal Box
OTB-0216-E
1.Description:
The fiber optic terminal box is suitable for optical fiber splitting/splicing using. It is reasonable design for fiber arrangement, and its bend radius is more than 30mm.
2.Features:
l Industry Standard User Interface, be made of ABS plastic.
l Can accommodate 1x4,1x8,1X16, 2x4,2x8 & 2x16 PLC steel tube splitter.
l Rainfall resistant, outdoor using.
l Can load 24pcs LC, FC, ST, SC … adapters.
l Wall mounting and pole mounting application.
l 2pcs cable entry ports; cable can be entry without cutting.
l 24pcs exit ports for FTTH drop cable.
3.Specification:
Model | Capacity | Dimension | Remark |
OTB-0216-E | Max. 24fibers | 274.3x313.4x114.1mm | Can load max.2pcs splitter box Can load max.24pcs SC simplex, FC simplex, LC duplex … adapters |
4.Application
l FTTH access network.
l Telecommunication Networks
l CATV Networks
l Data communications Networks
