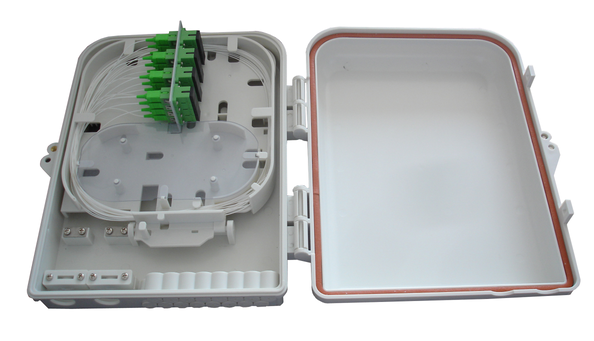

Fiber Optic Terminal Box
OTB-0216
Description:
OTB-0216 is a plastic fiber optic terminal box that mainly used for the optical cable distribution. It is 16 fibers, can load 16pcs adapters. It is often used in FTTH projects, outdoor wall mounted or pole mounted application.
Features
Industry Standard User Interface, be made of high impact plastic.
Can accommodate 1x4.1x8,1X16,2x4.2x8 & 2x16 PLC splitter.
Rainfall resistant, IP66 outdoor using.
Up to 16 FTTH drops.
wall mounting and pole mounting application.
2 inlet ports,16 outlet ports with 16pcs SC,LC,ST,FC adapters.
Application
FTTH access network
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
Specification:
Model | Dimension | Capacity | Cable port | Application |
OTB-0216 | 250.4x322.5x91.9mm | 16 fibers | 2 PG gland & 16 drop cable ports | Outdoor wall mounted and pole mounted; can load PLC 1:16 splitter |
