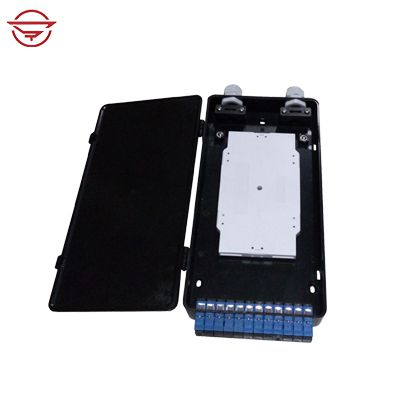

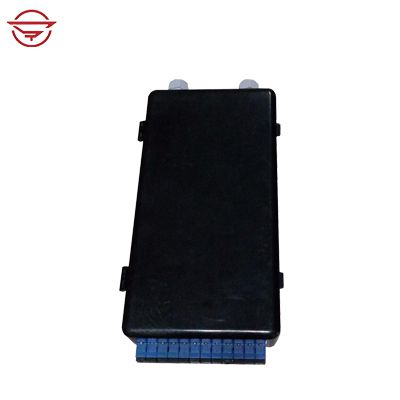

Fiber Optic Terminal Box
OTB-P12
Description:
The fiber optic terminal box is suitable for optical fiber splicing, connection and distribution. It is reasonable design for fiber arrangement, and its bend radius is more than 30mm.
Features
l Material: ABS plastic.
l Indoor wall mounted using
l Can load 12pcs LC, FC, ST, SC … adapters
l 2pcs cable entry port
l Capacity: 12 fibers; 1pc splice tray 12FO
Specification:
Model | Capacity | Dimension | Remark |
OTB-P12 | Max. 12fibers | 150.2x280.3x39.5mm | Can load max.12pcs SC simplex, FC simplex, LC duplex … adapters |

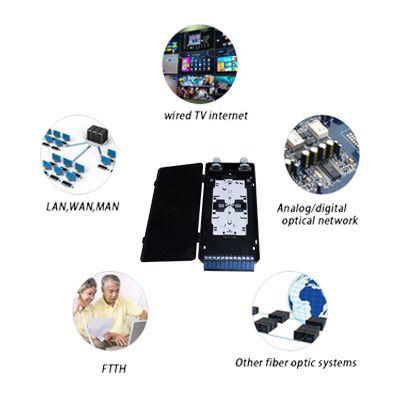

Application
l FTTH access network.
l Telecommunication Networks
l CATV Networks
l Data communications Networks
