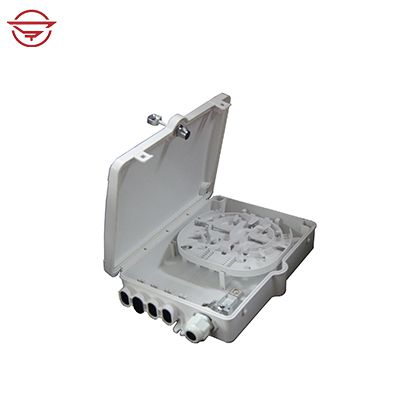

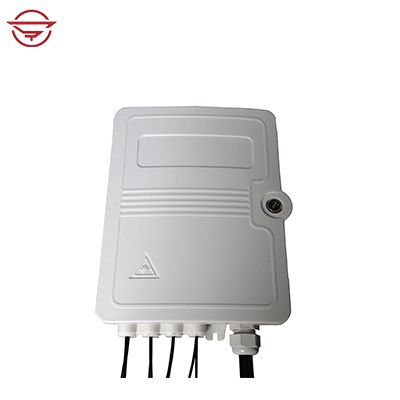

Fiber Optic Terminal Box
OTB-P08
Description:
The fiber optic terminal box is suitable for optical fiber splitting/splicing using. It is reasonable design for fiber arrangement, and its bend radius is more than 30mm.
Features
l Industry Standard User Interface, be made of ABS plastic.
l Can accommodate 1x4,1x8, 2x4,2x8 PLC steel tube splitter.
l Rainfall resistant, outdoor using.
l Can load 8pcs LC, FC, ST, SC … adapters.
l Wall mounting and pole mounting application.
l 1pc cable entry port; 4pcs exit cable ports for 8 fibers.
Specification:
Model | Capacity | Dimension | Remark |
OTB-P08 | Max. 8fibers | 171.4x234.5x47.4mm | Can load max.8pcs SC simplex, FC simplex, LC duplex … adapters |

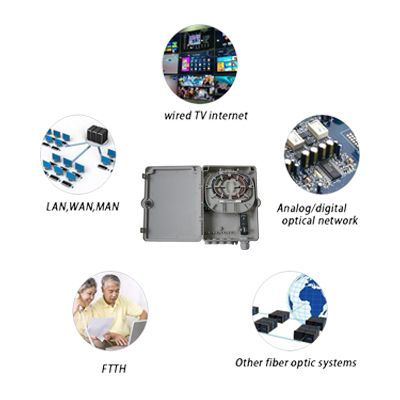

Application
l FTTH access network.
l Telecommunication Networks
l CATV Networks
l Data communications Networks
