FC Fiber Optic Patch Cord
1. Product Description:

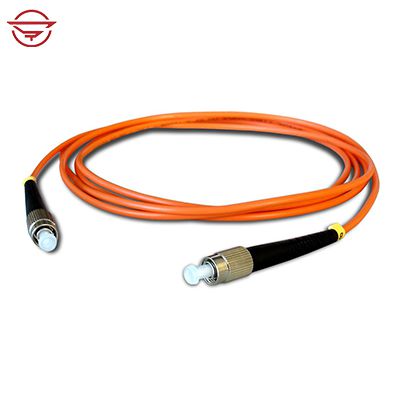

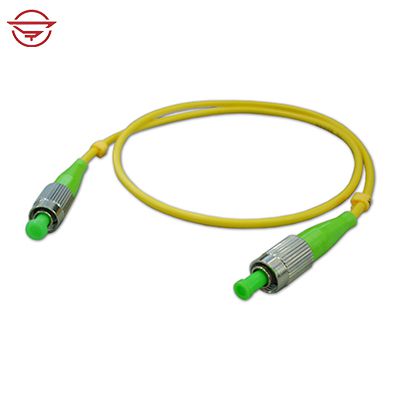

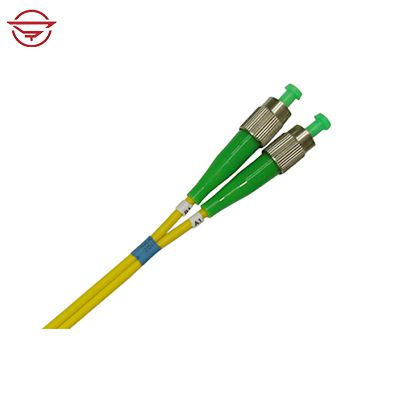

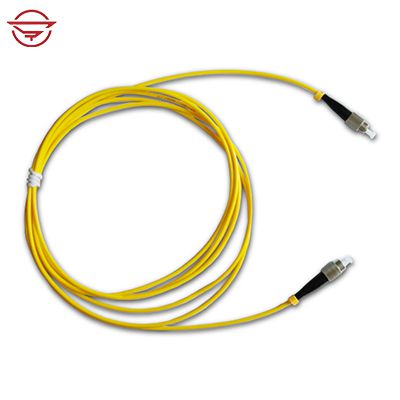

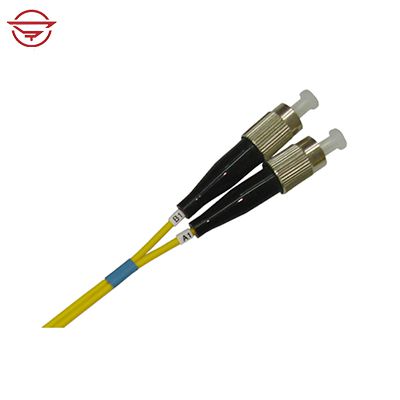

FC fiber optic patch cord is available in both single mode and multimode versions.
Both single mode and multimode versions FC fiber optic patch cords come with a zirconia ceramic ferrule.
2.Features:
¨ Low insertion loss
¨ High return loss
¨ Excellent mechanical endurance
¨ Good in repeatability
3.Application:
¨ Telecommunications
¨ CATV, LAN, MAN, WAN, Test & Measurement
¨ Military industry
¨ Medical
4.Parameter:
Parameter | Unit | Standard & Requirement | |||
PC(SM) | UPC(SM) | APC(SM) | PC(MM) | ||
Insertion Loss (Typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥35 |
Mechanical Endurance (500T) | dB | ≤0.2 | |||
Exchangeability | dB | ≤0.2 | |||
Durability | Time | ＞1000 | |||
Vibration | dB | ≤0.2 | |||
Operating Temperature | ℃ | ﹣40 ～﹢75 | |||
Storage Temperature | ℃ | ﹣45 ～﹢85 | |||
Cable Diameter | mm | Ф3.0, Ф2.0, Ф0.9 | |||
