Fiber Optic splitter box

OSB-OW-1X16

1. Product Description:

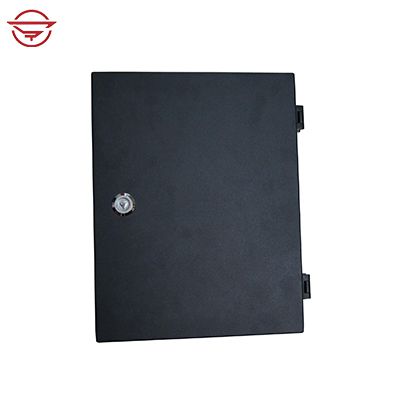

Wall mount Optic Splitter Box with cold rolled steel material, modular splitter easy to operate and good interchangeability.

2. Features:

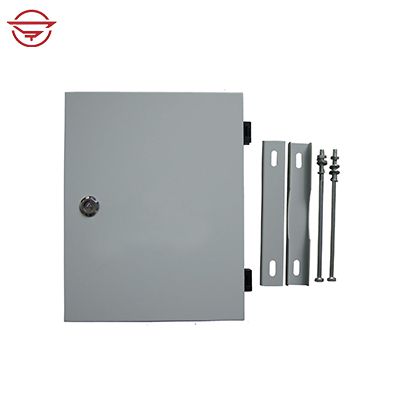

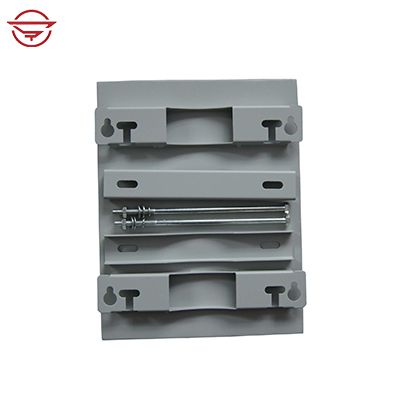

1. Wallmount and Pole mount,Indoor and outdoor(IP65).

2. Electrostatic spraying, black or white color.

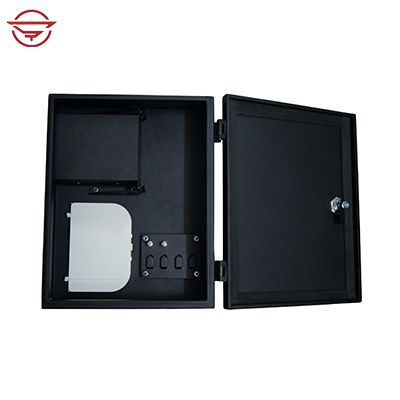

3. Inner splitter box: Aluminum material, 1*8(2psc) or 1*16.

4. Splitter: Metallic PLC splitter.

5.Connector: ST, SC, LC, MTRJ, FC.

6. Splice Tray: ABS material, white color

7. Max core: 16core

3. Performance:

    1. operating temperature: -5℃+40℃

2. relative humidity: ≤90%(+30℃)

3. Atm Press: 70Kpa-106Kpa

4. Storeage temperature: -40℃+70℃

5. insertion loss: ≤0.2dB  added losses: ≤0.2dB

6. return loss: ≥45dB  added losses: ≤0.5dB

4. Specification:

5. Application:

1. Telecommunications subscriber loop

2. LAN/WAN

3. CATV

6. Ordering Information:

OSB﹣OW - 1x16

 ①      ②③     ④

① Name: “OSB”: Optic Splitter Box

② ③Type: “O”: outdoor type; “W: wallmount or pole mount type

④ Fiber quantity: “1x16”: 16 cores
