Outdoor Optic Cable Joints Closure

CV016A

1. Product Description:

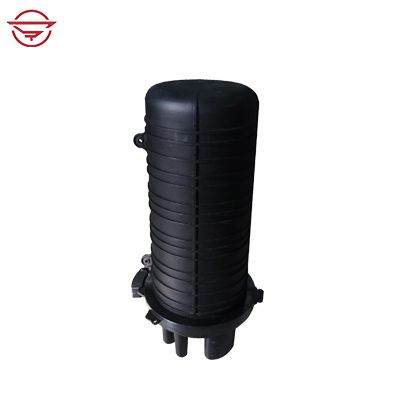

CV016A is a dome type fiber optic splice closure that widely applied to the splicing, distributing variable optical cables. It is big capacity, max. 576 fibers

2.Features:

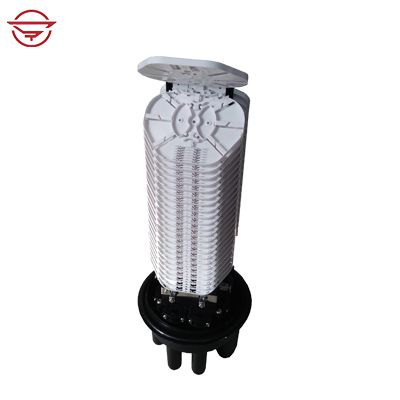

1) Splice tray: Max. 48pcs, each 12 fibers (OST-040,size:w134*L101*H7mm),if splice sleeve double layer per slot

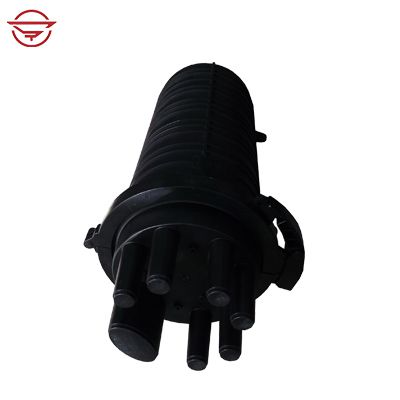

2) Cable port: 6pcs round port φ19.9mm, 1pc oval port 38x70mm for supporting cable entry without cutting. All cable ports are heat shrink sealing.

3) Waterproof: IP68

4) Wall-mounting, aerial hanger and pole holding

5) Material: high impact resistance PP materials with UV

3.Specification：
