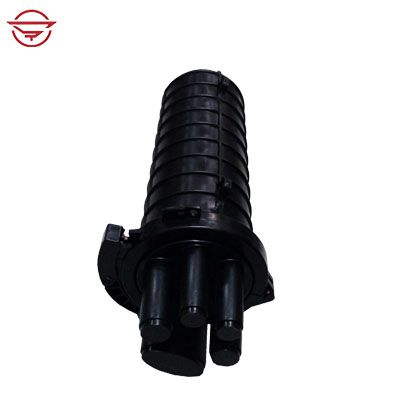

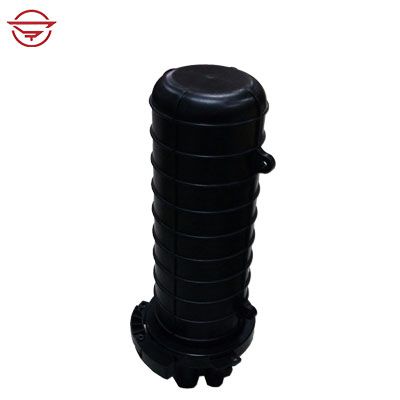

Dome Fiber Optic Splice Closure
CV019
1. Product Description:
Fiber optic splice closure CV019 is an equipment that used for optical fiber cable splicing, joint and protection. It is water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct, buried application.
2.Features:
Material: Outside PP closure body, inside ABS splice tray
Sealing structure: Heat shrinkable sealing
IP standard: IP68
Cable port: 1 oval port 24.5*50mm + 4 round ports (2pcs Ф20mm & 2pcs Ф16mm)
Capacity: Max. 48 fibers

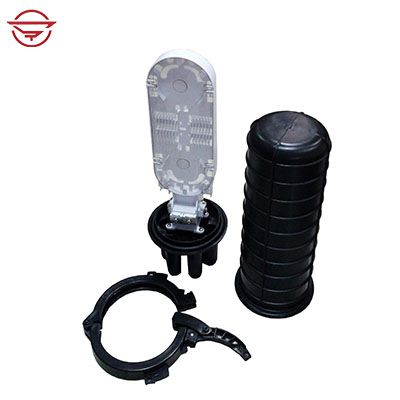

Splice tray: only 1pc, two sides are same design, each side 12 slots for max. 24 fibers splicing.
Simplified design, very easy for installation and maintance.
3.Specification:
| Model | Dimension | Material | Splice tray | Max. capacity | Cable port | Structure |
CV019 | Ф139.8x349.1mm | PP | 1PC | 48 FO | 1 oval & 4 round port | Heat shrinkable sealing |
4.Accessories:
Item | Name | Specification | Qty |
1 | Fiber optic heat protect shrinkable sleeve | Length 60mm | 48 pcs |
2 | Heat shrinkable sleeve | Ф25*100mm black | 2 pcs |
3 | Heat shrinkable sleeve | Φ30*100mm black | 2 pcs |
4 | Heat shrinkable sleeve | φ45*120mm black | 1 pc |
5 | Cable tie | Length 120mm | 6 pcs |
6 | Aerial hanged accessories | Stainless steel | 1 set |
5.Optional accessories:
Item | Name | Model | Qty | Remark |
1 | Pole mounted accessories | CV010-76 | 1 set | Pole mounted application |
