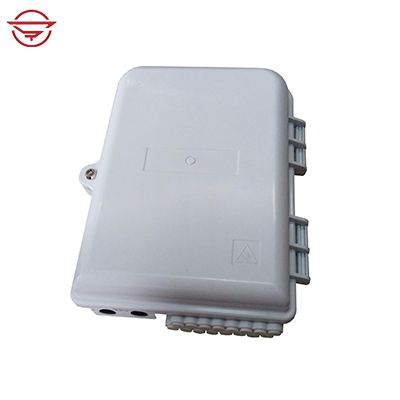

16 Ports fiber optic terminal box

OTB-0216-F2

1. Product Description:

Fiber optic terminal box that available for the distribution and terminal connection of various kinds of optical fiber system, especially suitable for mini.network terminal distribution, in which the optical cables, patch cords or pigtails are connected.

2. Features:

• Material: High quality plastic with UV resistance

• Black or white color optional.

• Can load 16pcs SC simplex adapter.Max. for 24fibers splice.

• Inside splice tray can accommodate 2pcs 1x8 or 1pc 1x16 PLC splitter.

• Rainfall resistant, IP65 outdoor using.

• Wall mounting and pole mounting application optional.

• Input 2 ports suitable for cable diameter Φ8mm,Support cable uncut application; Output 16 FTTH drop cable ports 3*2mm ,with drop cable fixing part.

3. Specification:

4. Application:

• FTTH access network

• Telecommunication Networks

• CATV Networks

• Data communications Networks

• Local Area Networks
