OTB-P029
1. Product Description:

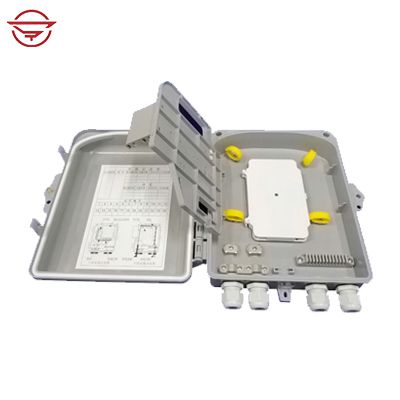

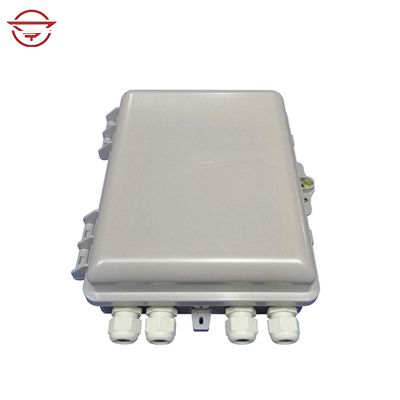

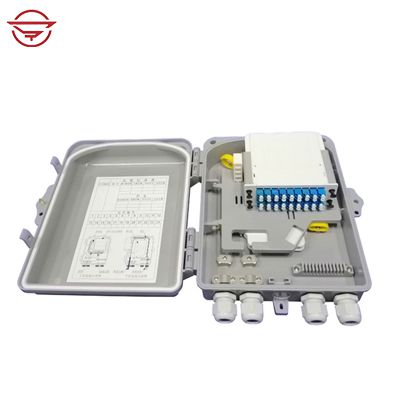

OTB-P029 is a plastic box that can load PLC 1*8 or 1*16 splitter cassettes for fiber distribution and connection. It is made of ABS plastic, IP68 waterproof standard. The weight is quite light which is suitable for outdoor wall mounted or pole mounted application. Its max. capacity is 24 fibers.
2. Features:
l ABS plastic material
l White or black color
l Mechanical sealing structure
l Waterproof, IP65
l Cable port: 4pcs cable gland PG19 suitable for Φ12-15mm cable entry, and 1pc Φ20mm reserved hole
l With 1pc OST-050 splice tray, max. 24 fiber
l Can load 2pcs 1x8 or 1pc 1x16 splitter cassett
l Outdoor wall mounted, pole mounted application
3. Specification:
Model | Dimension | Material | Capacity | Splitter cassette | Application |
OTB-P029 | 250x279x101mm | ABS | 24 fibers | 2pcs 1*8 or 1pc 1*16 | Outdoor wall mounted or pole mounted |
4. Accessories:
Item | Specification | Qty |
Heat shrinkable protection sleeve | 40x2.6x1.2mm | 24pcs |
Cable tie | 3*120mm, white color | 6pcs |
Screws | C type 4*30, metal | 3pcs |
Plastic expansion pipe | Φ6mm, white color | 3pcs |
Key | ABS plastic, white color | 1pcs |
Optional accessories:
Item | Specification | Qty |
Pole mounted kit | 12*620mm stainless tape | 2pcs |
