OTB-P030
1. Product Description:

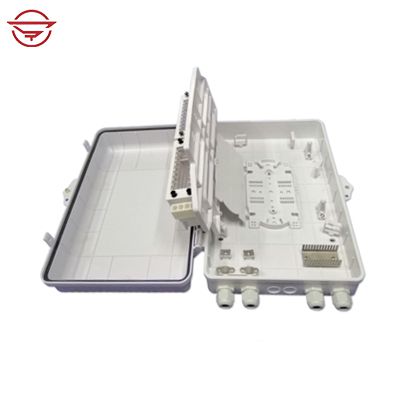

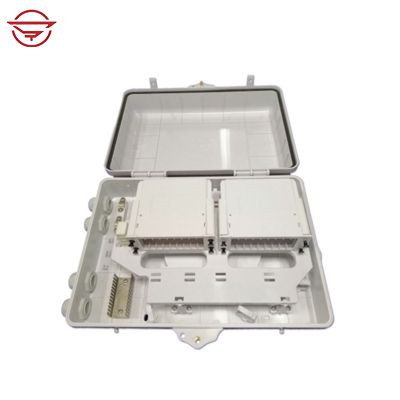

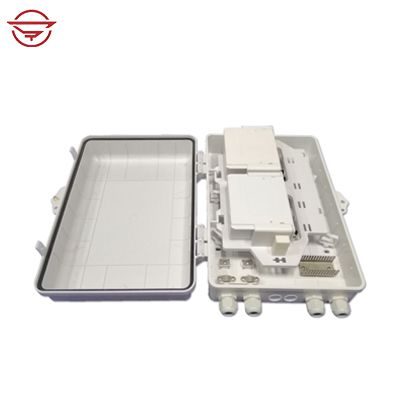

OTB-P030 is a plastic box that load PLC 1*8 or 1*16 splitter cassette or fiber optic adapter for fiber distribution and connection. It is made of ABS plastic, suitable for outdoor wall mounted application. Its max. capacity is 48 fibers.
2. Features:
l ABS plastic material
l White or black color
l Mechanical sealing structure
l Waterproof, IP65
l Cable port: 4pcs cable gland PG16 suitable for Φ10-14mm cable entry, and 2pc Φ20mm reserved hole.
l With 2pc OST-048 splice tray, max. 48 fibers
l Can load 4pcs 1x8 or 2pc 1x16 splitter cassette or 1pc 48 SC simplex adapter plate
l Outdoor wall mounted application
3. Specification:
Model | Dimension | Material | Capacity | Splitter cassette | Application |
OTB-P030 | 288x403x126mm | ABS | 48 fibers | 4pcs 1*8 or 2pc 1*16 | Outdoor wall mounted |
4. Accessories:
Item | Specification | Qty |
Heat shrinkable protection sleeve | 60x2.6x1.2mm | As per capacity |
Cable tie | 3*100mm, white color | 6pcs |
Screws | C type 5*40, metal | 4pcs |
Plastic expansion pipe | Φ8*40mm, white color | 4pcs |
Key | ABS plastic, white color | 1pcs |
