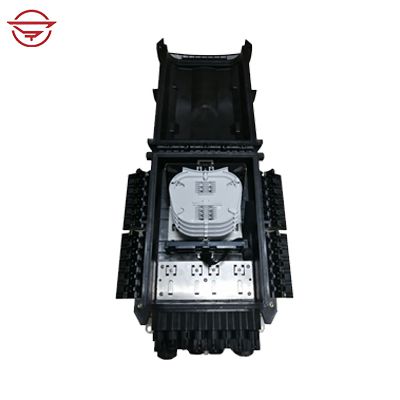

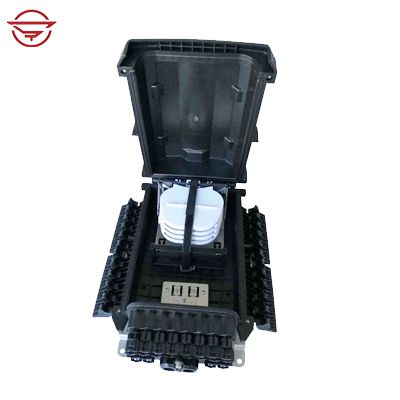

48 Fibers Fiber Optic Terminal Box / FTTh
OTB-P037
1. Product Description:
16 Ports Fiber optic terminal box suitable for optical fiber splicing, distribution and protection. IP68 waterproof standard. Reasonable design for fiber arrangement. Outdoor wall mounted and pole mounted application.
2. Features:
l Material: PP +GF
l 24 fibers, with 2pcs splice trays (Max. Can load 4pcs splice trays, 48 fibers)
l Can load 24pcs SC simplex adapter
l Each splice tray can put 1pc 1:8 PLC steel tube type splitter.
l 4pcs Φ18mm entry cable ports (with 2pcs Φ12mm gasket) & 16pcs 4mm drop cable ports
l Wall mounting and pole mounting application
l Waterproof, IP65, outdoor using
3. Specification:
Model | Capacity | Dimension | Adapter port |
OTB-P037 | Max. 48 fibers | 411.5*243*143mm | 24pcs SC simplex adapters |
4. Accessories:
Item | Name | Specification | Unit | Qty |
1 | Clamp | 18-32 stainless steel | PCS | 4 |
2 | inner hexagon spanner | S5, black | PCS | 1 |
3 | Cable tube | Outside Ф6mm, plastic, white | Meter | 0.5 |
4 | Expansion screw | M8*70 stainless steel | PCS | 4 |
5 | Cable tie | 3mm*120mm, white | PCS | 5 |
6 | Insulating tape | 0.15*17mm*8 yard, black | PCS | 1 |
7 | Cleaning cloth | 6*6/5050 type | PCS | 1 |
8 | Heat shrinkable protect sleeve | 60MM*2.3*1.0 | PCS | 24 or 48 |
