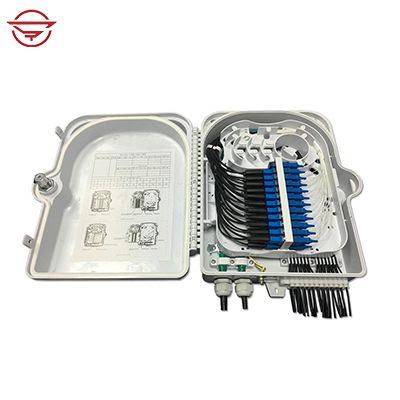

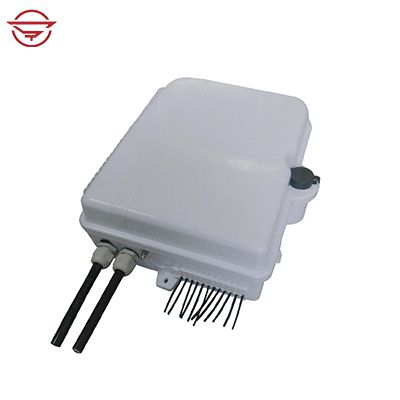

Fiber Optic Terminal Box
OTB-0216-E1
1. Product Description:
The fiber optic terminal box is suitable for optical fiber splitting/splicing using. It is reasonable design for fiber arrangement, and its bend radius is more than 30mm.
2. Features:
l Industry Standard User Interface, be made of ABS plastic.
l Can accommodate 1x4,1x8,1X16, 2x4,2x8 & 2x16 PLC steel tube splitter.
l Rainfall resistant, outdoor using, IP66.
l Can load 24pcs LC, FC, ST, SC … adapters.
l Wall mounting and pole mounting application.
l 2pcs cable entry ports; 24pcs exit ports for FTTH drop cable.
3. Specification:
Model | Capacity | Dimension(mm) | Can load |
OTB-0216-E1 | Max to 24 fibers | 274.3x334.2x114.1mm | Can load max.2pcs splitter box Can load max.24pcs SC simplex, FC simplex, LC duplex … adapter |
4.Application:
l FTTH access network.
l Telecommunication Networks
l CATV Networks
l Data communications Networks
