OTB-P051
1. Product Description:

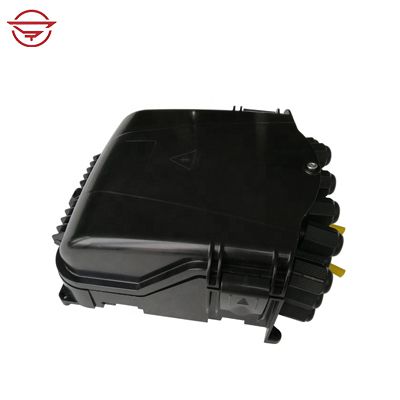

OTB-P051 is IP65 standard for outdoor wall mounted fiber optic termination. There are 16 outdoor SC adapter on output ports support pigtail connect directly. There are 2 pcs cable entry ports designed to support the cable entry without cutting. The reasonable design makes the fiber arrangement and connection more convenient.
2. Features:
Material: ABS + UV plastic
Sealing structure: Mechanical sealing
IP standard: IP65
Color: white or black
Cable ports: 2pcs φ6-12mm cable ports, support cable entry without cutting;

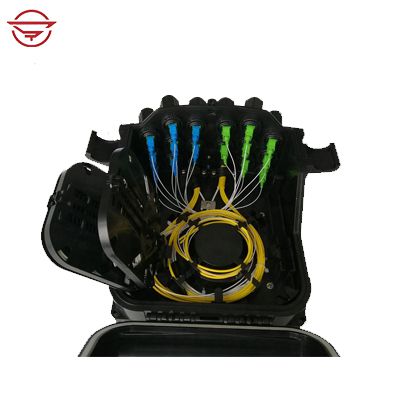

16pcs outdoor SC adapters on output ports
Capacity: 24 fibers, with 2pcs splice tray OST-069
Each splice tray OST-069 can load 1pc 1X8 PLC steel tube type splitter
Two splitter space for PLC 1X16 steel tube type splitter
Applicaiton: wall mounted or aerial hanged
1. Specification:
| Model | Dimension(mm) | Material | Splicing capacity | Cable port | Application |
OTB-P051 | 213x253x118 | ABS | 24 fibers | 2 entry port; 16 output port with SC adapter | Outdoor wall mounted or aerial hanged |
2. Accessories:
Item | Name | Specification | Qty |
1 | Heat shrinkable protection sleeve | 45mm*2.3*1.0 | As per using capacity |
2 | Cable tie | 3mm*120mm white | 5pcs |
3 | Round head Self tapping screw | C type 4*30mm metal | 4pcs |
4 | Plastic expansion tube | Ф6mm white | 4pcs |
5 | Inner hexagon spanner | S4 black | 1pcs |
