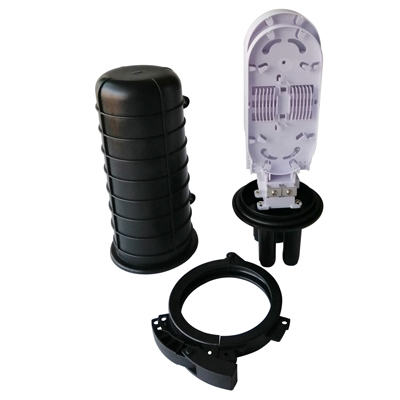

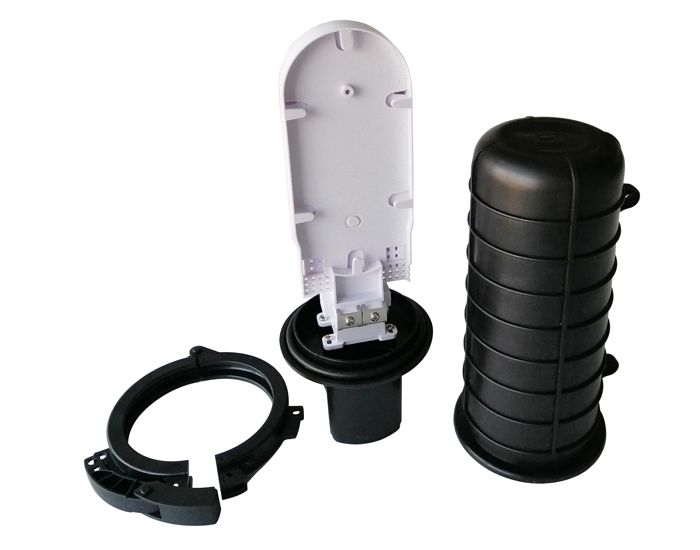

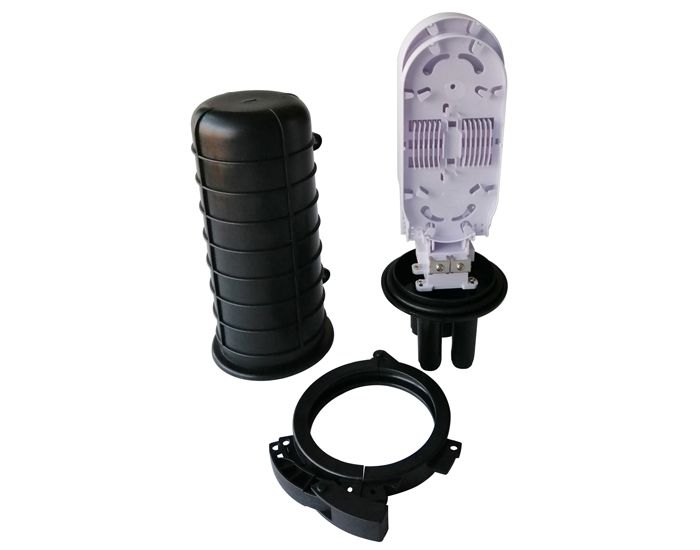

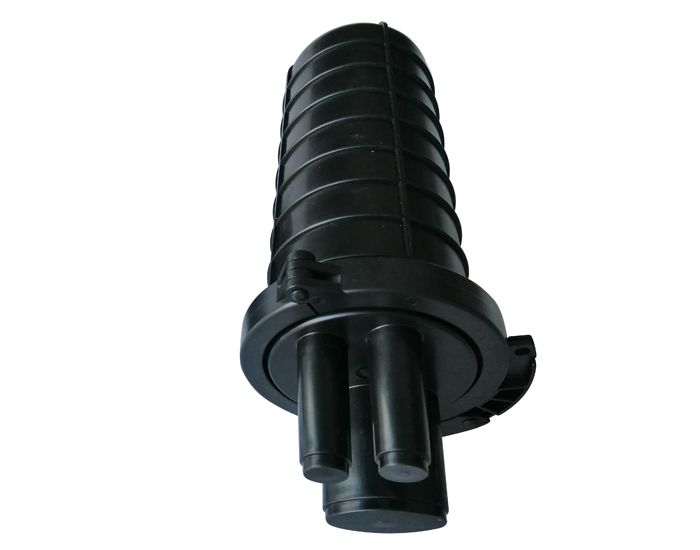

48FO Dome splice closure CV028A

Material: Outside PP closure body, inside ABS splice tray

Sealing structure: Heat shrinkable sealing

IP standard: IP68

Dimension: Ф140.3x313.1mm

Cable port: 1 oval port 25.5*50mm + 2 round ports Ф16mm

Capacity: Max. 48 fibers

Splice tray: 2pcs splice tray OST-072 can load PLC 1*4 or 1*8 steel tube splitter

With a cable storage tray for storing abundant fibers

Simplified design, easy for installation.

For more details, please contact us.
