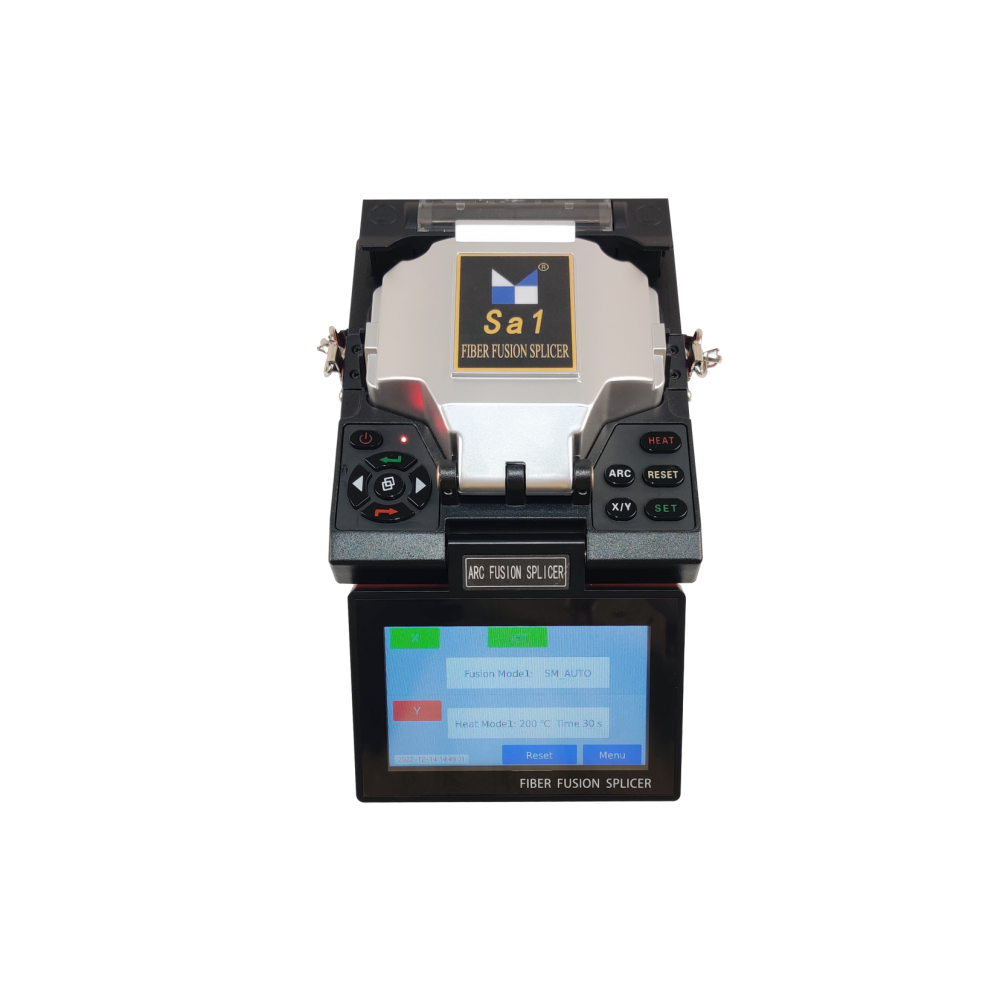

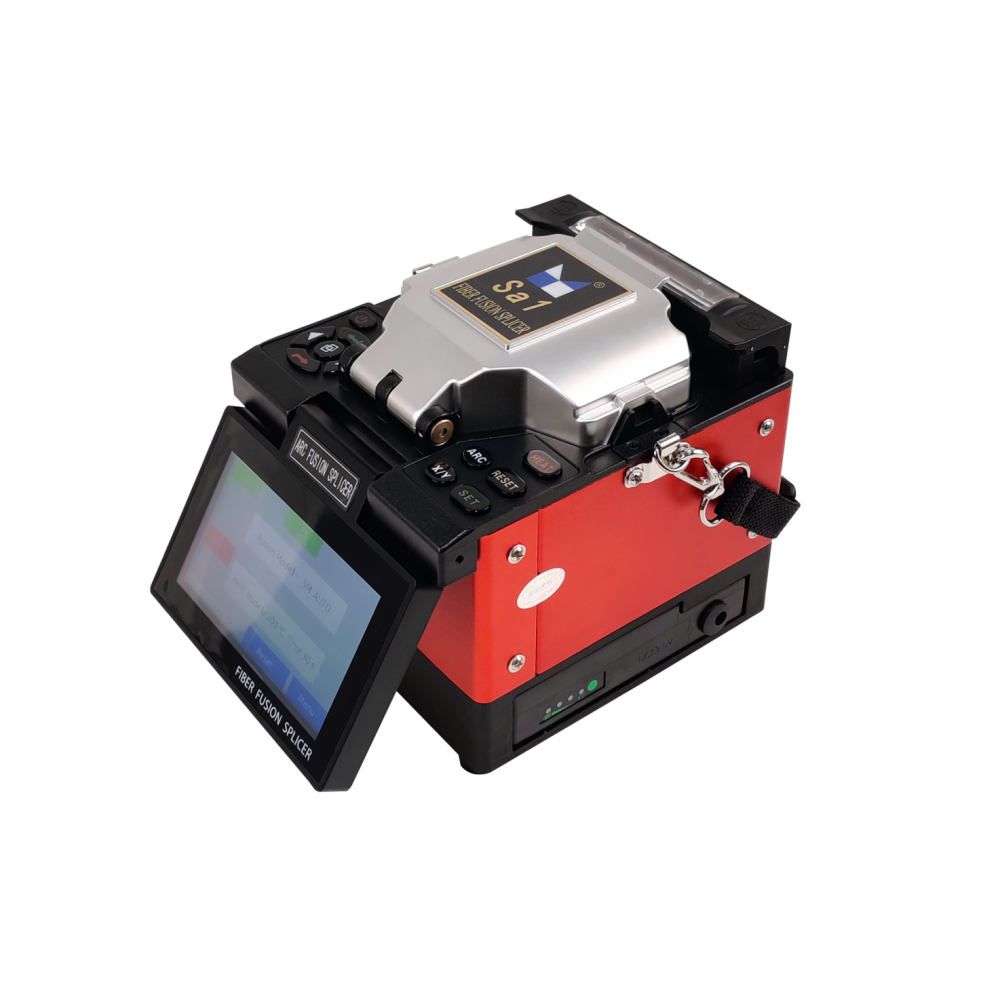

Optical fiber fusion splicer
Model: SA1
1. Product Description:
CST Fusion splicer hi-tech, reliability, small size, light-weight, easy-handling.
The fiber retention clamps support the automated operations. When the sheath clamps open automatically after splicing, the fiber retention clamps gently hold the spliced fiber to keep it from flying out. The retention clamps release when the fiber is lifted by the operator.
2. Features:
High-power dual-LED lighting,Convenient for night operation and easier to place optical fiber.
3 in 1 Universal fiber holder suitable for bare fibers, drop cables, pigtails.
Stable and Precise core to core alignment,low loss.
4.3-inch HD touch screen, easy to operate and flexible.
Small size 130*154*132mm and light weight only 1.95kgs(Include battery).
With preheating function, shorter heat shrinkage time.
Removable battery,equipped with 5200mAh battery, can splice and heated for more than 200 times.
3. Specification:
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZ DS(G.655),BI(G.657) |
| Fiber holder | Muti-function, suitable for bare fibers, drop cables, pigtails, etc. |
| Diameter of fiber | Cladding:80-150μm, coating:100-1000μm |
| Typical splice loss | SM:0.02dB, MM:0.01 dB, DS:0.04dB, NZ DS:0.04dB, BI:0.02dB |
| Return Loss | >60dB |
| Fiber cleaved length | 8-16mm |
| Splicing time | 8S |
| Battery capacity | 5200mAh, Typical 200 Cycles (Splice&Heat) per Charge |
| Power supply | input: AC100-240V(50/60HZ), output: DC11-13.5V |
| Dimension | 130*154*132mm |
4. Accessories:
1. Carry box (plastic)
2. Power charger
3. Fiber optic cleaver bag
4. Fusion splicer
5. Spare electroderod 1pair
6. Fiber optic cleaver
7. 3-hole fiber stripper
8. Drop cable stripper
9. Cooling tray
10. Manual
For details, please contact us.
